SpecSeal FP Intumescent Firestop Plug

SpecSeal FP Intumescent Firestop Plug
SpecSeal FP Intumescent Firestop Plug
SpecSeal FP Intumescent Firestop Plug
SpecSeal FP Intumescent Firestop Plug

SpecSeal FP Intumescent Firestop Plug

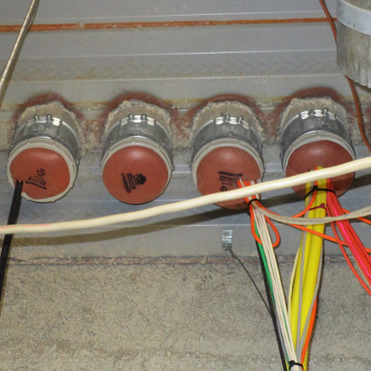

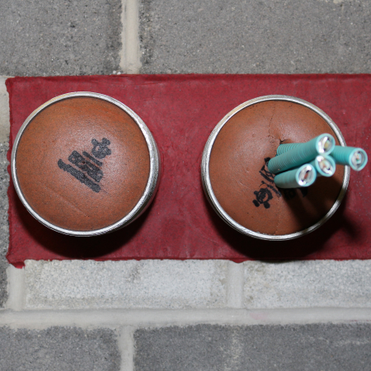

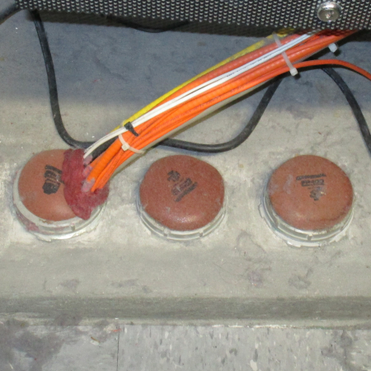

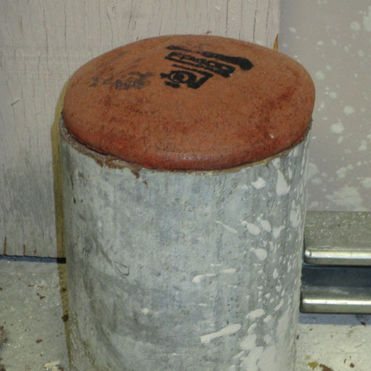

SpecSeal FP Intumescent Firestop Plugs are easy to install, creating a robust seal against fire and smoke. Firestop Plugs make an excellent solution for temporary installation overnight as well as permanent long-term seals for blank openings and cable penetrations. Sized to fit 2" and 4" diam. openings, firestop plugs make sealing conduit stubs and sleeves a breeze.

Test Standards ASTM E90
ASTM E814 (UL1479)
CAN/ULC-S115
Third Party Approvals

Features

  • Testing in Gypsum walls and concrete walls and floors
  • Soft and easily compressed into conduit stubs and sleeves
  • Partners with other SpecSeal Firestop Products
Applications
Blank Openings
Cables
Metallic Pipe
Plastic Pipe
Properties
Finished Product
Intumescent
Low VOC
No Expiration
Paintable
Re-Enterable
STC Rating
Smoke Barrier

Specifications

Property Value
Color Red
Density 19 pcf (304 kg/cu m)
Weight 2" - 0.20 lb (91 g), 4" - 0.50 lb (227 g), 5" - 0.50 lb (227 g)
Expansion Begins 350°F (176°C)
Volume Expansion 10x
In Service Temperature Less than 130°F (54°C)
Storage Temperature Less than 130°F (54°C)
VOC Content N/A
Shelf Life No Limit

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
FP400 730573072042 Firestop Plug 4" (102 mm) 1 10 7.1 Firestop Plug 4
FP200 730573072028 Firestop Plug 2" (51 mm) 1 10 4 Firestop Plug 2
FP500D 730573072059 Firestop Plug sized for 5 in. (127 mm) opening/sleeve 1 10 6 Firestop Plug sized for 5 in. (127 mm) opening/sleeve
