Formulated with the Contractor in Mind
SpecSeal® LCI Intumescent Sealant works into tight annular spaces between pipes and wall or floor assemblies. LCI Sealant's formulation makes it equally suited for wall, floor, and overhead application without slumping or sagging. Requiring minimal tooling, tested with over 25 different metallic and plastic pipe types, and no special tools for application, LCI is the go to solution for maintaining fire, smoke, and sound protection for plumbing penetrations in fire-rated construction.

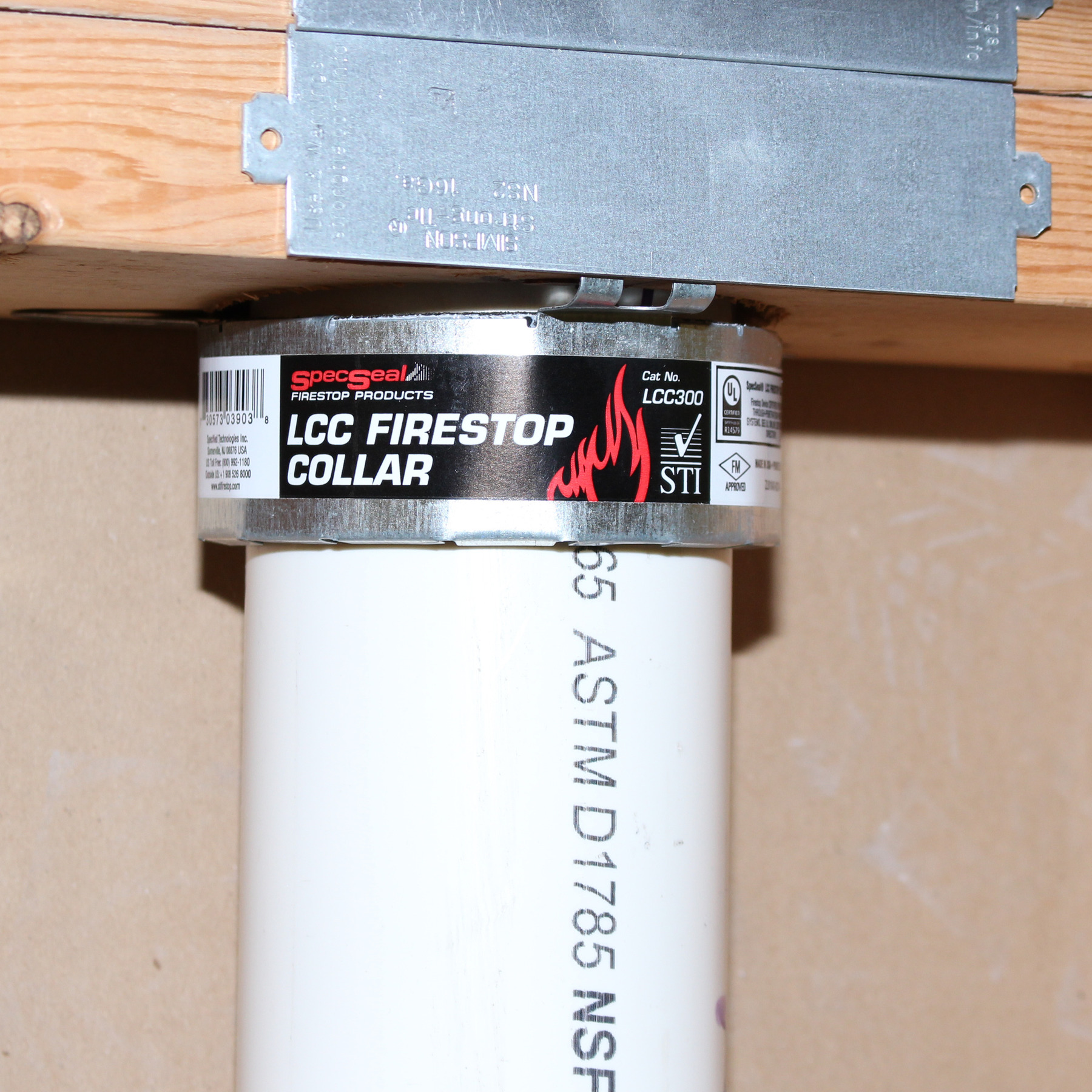

Fast Installing Firestop Pipe Collars
SpecSeal® LCC Firestop Collars are factory-manufactured firestop devices sized to fit plastic pipes up to 4 in. (102 mm) trade size. LCC Collars consist of a metal shell with an intumescent rubber lining and integral locking mechanism. In the event of a fire, the collar quickly expands with heat to seal off the path for fire, smoke, and hot gases. Eliminate the guess work and simplify the process of firestopping plastic pipe with SpecSeal® LCC Collars.
SpecSeal® RTC Firestop Collars are adjustable collars sized to fit 3 in (76 mm) or 4 in (102 mm) trade size plastic pipes and associated couplings. One part number with range-taking capabilities resolves having to inventory individual collars for each pipe size. RTC Collars are the only factory-supplied firestop collars sized to fit couplings, thereby eliminating the need to field-assemble collars from wrap strip and sheet metal restraining collars.

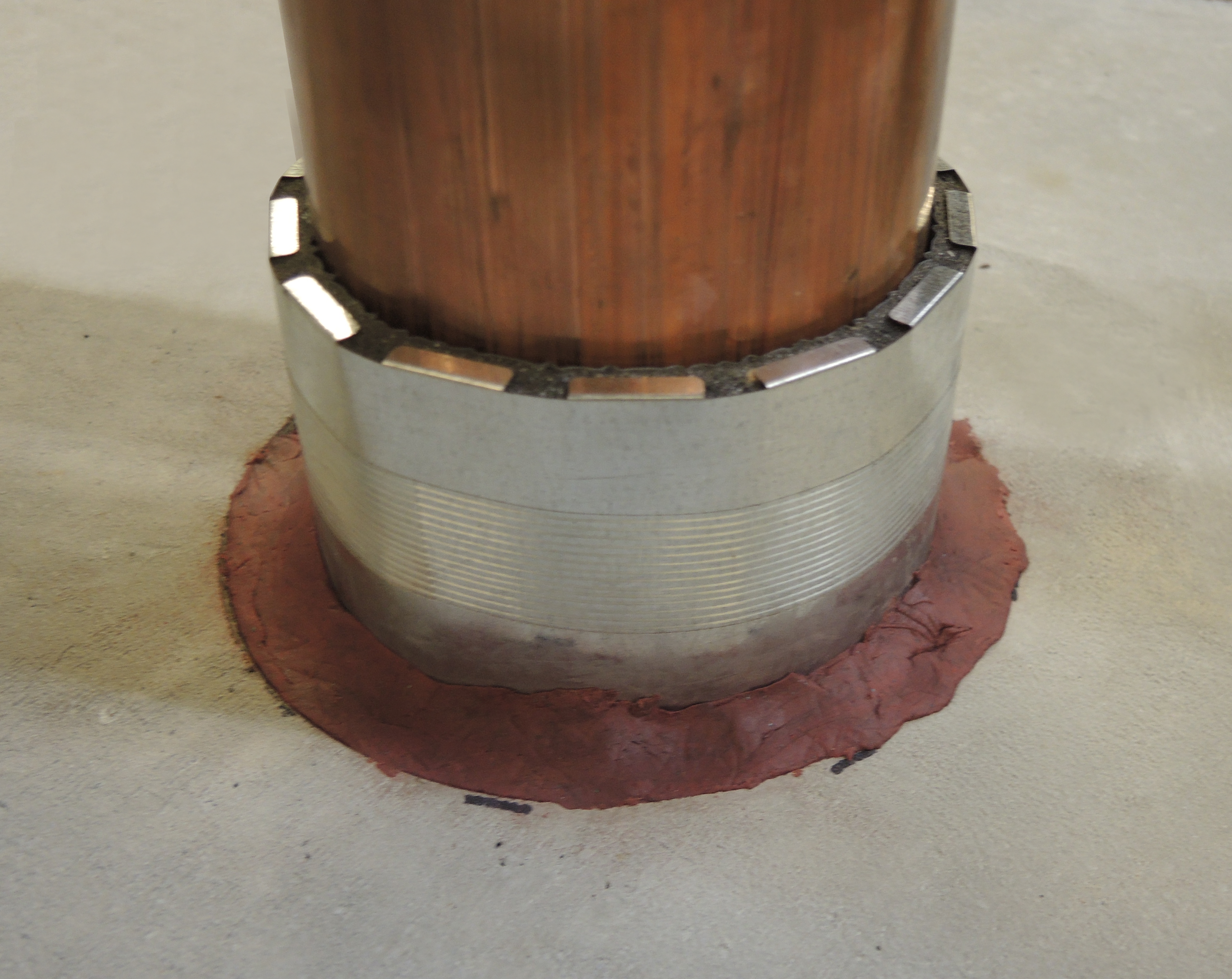

One Sided Access Solutions
SpecSeal® Intumescent Sleeve is a factory manufactured device designed to protect metallic and plastic pipes penetrating through fire-rated walls and floors. Utilizing a flexible steel sleeve body and molded intumescent lining, the SpecSeal® Intumescent Sleeve wraps around pipes ranging from 2 in. to 4 in. and easily slides in place from one side of wall or top side of floor.
- Installs from one side of wall or top side of floor
- Rapid expansion - closes off burning pipes quickly
- Thin profile - use it in all the tight spots
- Flexible & durable - no loose flakes (eye hazards)
- Water resistant - no water soluble or hygroscopic ingredients

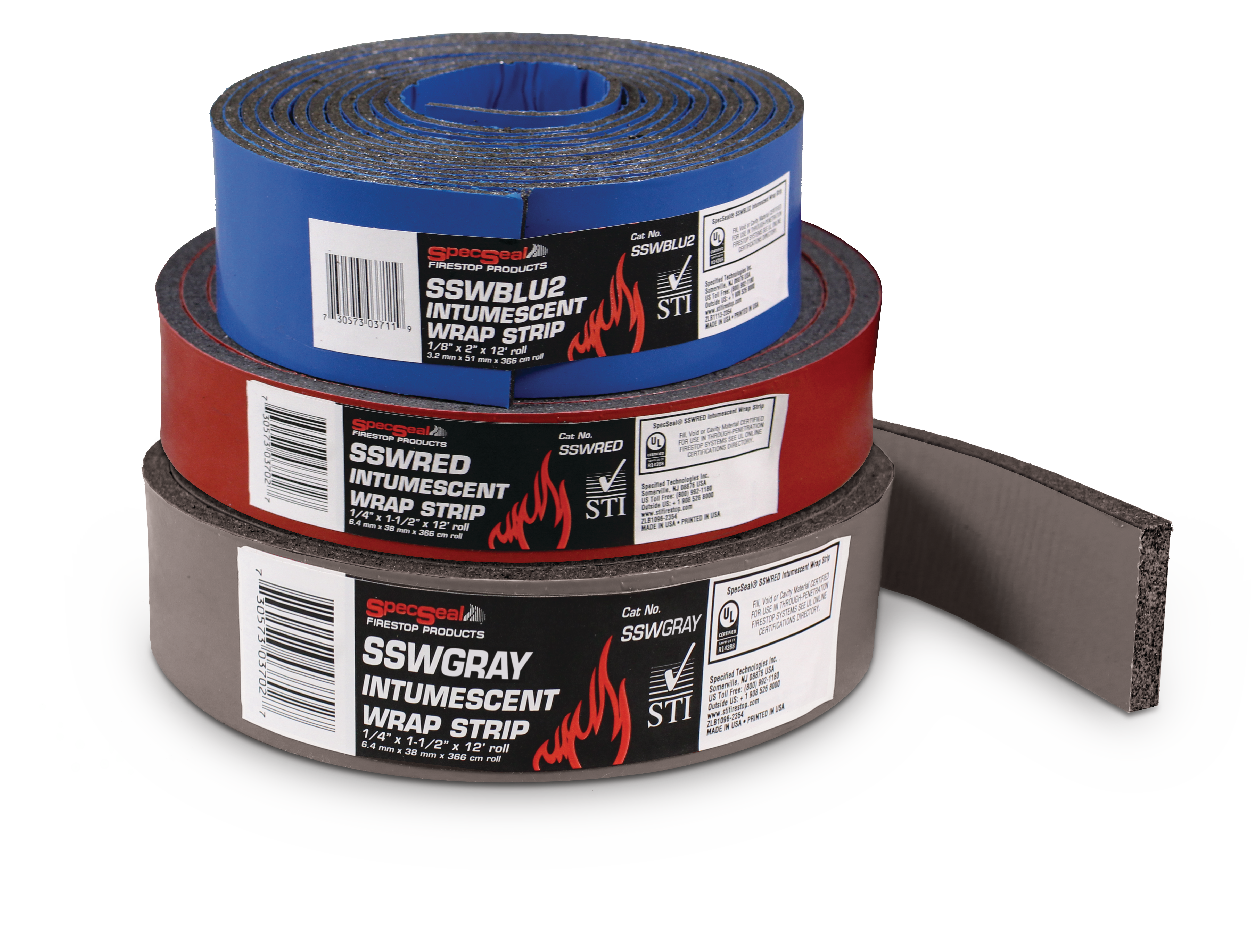

Thin Profile Wrap Strips for Complex Piping Systems
SpecSeal Wrap Strips a thin profile highly expansive intumescent strip available in a variety of sizes and types to tackle any combustible penetration. SpecSeal Wrap strips can be used on their own for small diameter plastic pipes or in conjunction with restraining steel for plastic pipes up to 18 in. diameter. Wrap Strips are an excellent solution for contractors addressing a large range of plastic pipe types and sizes on a project.
- Huge library of tested and proven listings
- Minimize waste by using only what you need
- Tested with 17 different plastic pipe types
- FBC System Compatible Lubrizol CPVC Piping Systems

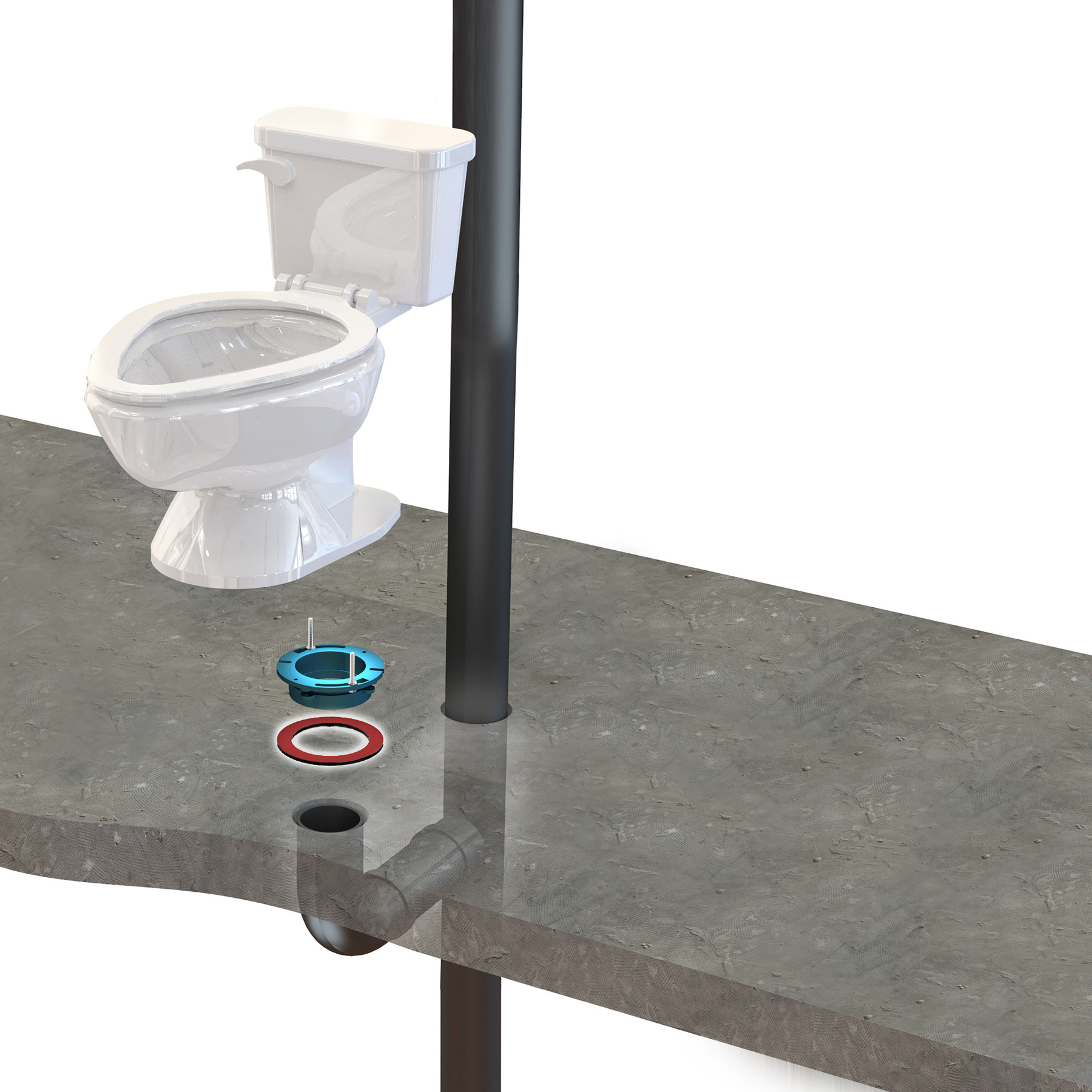

Toilet Flange Solution, no Sealant or Ladders Required
Traditional firestopping methods for sealing closet flanges require the firestop material to be applied around the pipe prior to setting the toilet flange, which complicates flange installation if the firestop material is not recessed a sufficient distance from the top to accommodate the throat of the flange. Alternatively, firestopping materials can be applied from the underside of the floor, necessitating the use of ladders or lifts. SpecSeal Closet Flange Firestop Gaskets simplifies the process of sealing closet flanges from the top side of floor, sitting between the flange ring and top of floor. SpecSeal Closet Flange installs fast without interfering with flange fitment or requiring access from underside of floor.
- Seamless fit for fast, easy installation with no tools required
- Installs from the top, saving labor
- No caulk to clean up
- Always ready to use—no shelf life—no caulk tubes to dry out

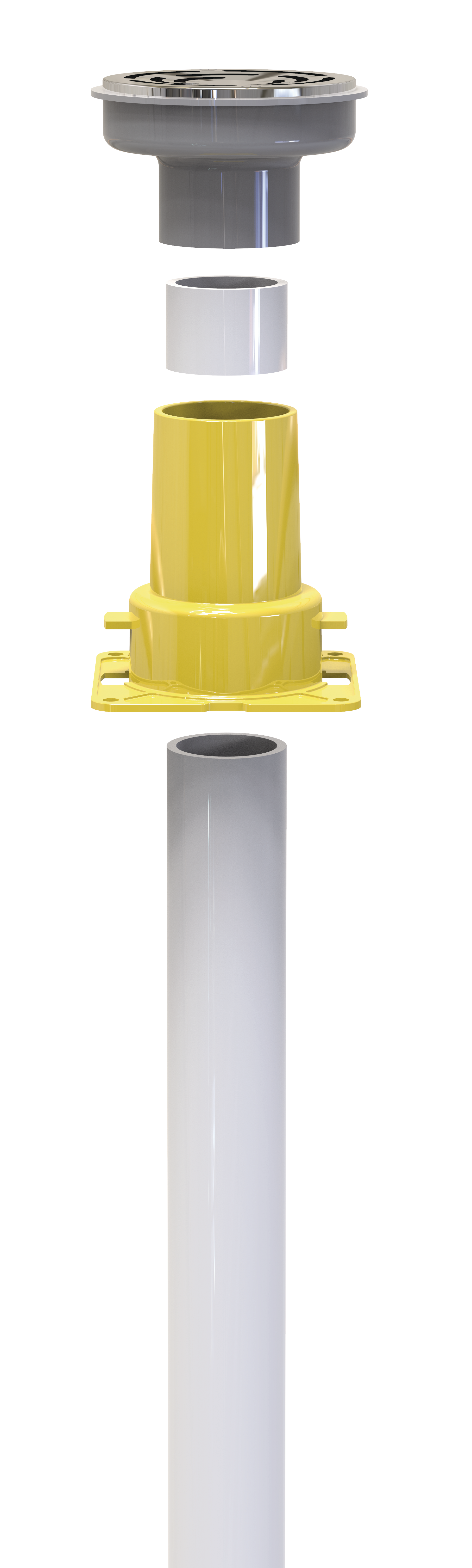

Cast-In Place Solution for Floor and Shower Drains
The Cast-In Drain Device is an economical solution for firestopping of shower and floor drain penetrations in concrete floors. The Cast-in Drain Device combines with 2 in trade size PVC drain bodies and installs prior to concrete pour, eliminating the need for firestopping penetrations from below.
- For use with 2 in Trade Size PVC Pipe Systems
- Compatible with solvent welding and glue
- Tested in minimum 4-1/2 in thick concrete floors
- Designed for PVC Shower and Floor Drains
- Meets ASTM D2665
- Made from NSF Approved Material
Ease of System Selection and Submittal Generation
Guided search for finding the right firestop system for your condition and building Firestop Submittals for submission to your AHJ.
- Find firestop systems on your phone, tablet, or the web
- Streamlined firestop system submittal package
- Integrate user documents, company logos, and Engineering Judgements
Firestop Penetration Design and Collaboration in Revit
Firestop Clash Management® (FCM) is our Autodesk® Revit® Plugin that takes the guess work out of firestop solution design and selection. Utilizing clash detection and model parameter data, FCM scans your model detecting locations where construction joints and penetrations occur and recommends appropriate firestop systems at these locations. Additionally, FCM places marker and product objects within the model ensuring that system selection are present within the model and accessible to project team members.
- Automates system selection and placement within the mode
- Functions at your workstation, no need to manually export to third party systems/services
Healthcare
We understand the challenges you face maintaining fire life safety compliance in the healthcare physical environment, and we can be your strategic partner in providing cost effective, sustainable solutions. STI offers a full catalog of tested solutions, as well as a dedicated team of Healthcare experts.
Learn more about our Healthcare Solutions
Date Center
The Data Center environment represents a unique challenge compared to other occupancy types. Beyond life safety, physical security, containment of conditioned air, and increased electrical and low voltage pathway infrastructure further complicate building design.
Learn more about our Data Center Solutions
Government
Protection and security for government facilities needs to be constantly maintained. STI partners with government agencies to help protect staff and critical infrastructure alike in disaster scenarios. EZ Path® not only protects lives and property, it’s maintenance-free design assures uninterrupted security.
Learn more about our Government Solutions
Higher Education
Fire life safety and acoustic protection are critical background elements of any successful educational intuitions. Providing robust and reliable protection for students and staff alike while creating a peaceful environment free of distractions for students to excel in.
Learn more about our Higher Education Solutions
Finance
Privacy, security, and safety are major priorities for financial institutions. EZ Path® not only protects lives and property, it’s maintenance-free design assures uninterrupted security. When it comes to protecting critical infrastructure, EZ Path is the only logical choice.
Learn more about our Finance Solutions
Tools & Resources
We’ve curated an extensive collection of tools and resources tailored to meet the specific needs of professionals in the industry. Our assortment focuses on functional tools and references for Firestop solutions, providing professionals with the knowledge, guidance, and tools necessary to ensure safety, compliance, and precision in their projects, ultimately enhancing the integrity of their construction work.
- Guided search for finding the right firestop system for your condition and building Firestop Submittals for submission to your AHJ
- Find firestop systems on your phone, tablet, or the web
- Streamlined firestop system submittal package
- Integrate user documents, company logos, and Engineering Judgements
Automatically find firestop systems from within AutoDesk® Revit®
Track fire life safety systems on your project via your tablet, phone, or web browser.
Find any and all LEED Credits associated with our firestop products in one place
See how EZ-Path is the best return on investment cable pathway solution on the market
Determine how many EZ-Path Fire-rated Pathways you need based on cable size and count
These powerful tools guarantee the right systems are selected for the fastest and most cost-effective installation for all your projects.
LCI Intumescent Firestop Sealant
SpecSeal LCI Sealant has excellent caulking properties making it easy to apply in vertical applications as well as overhead.

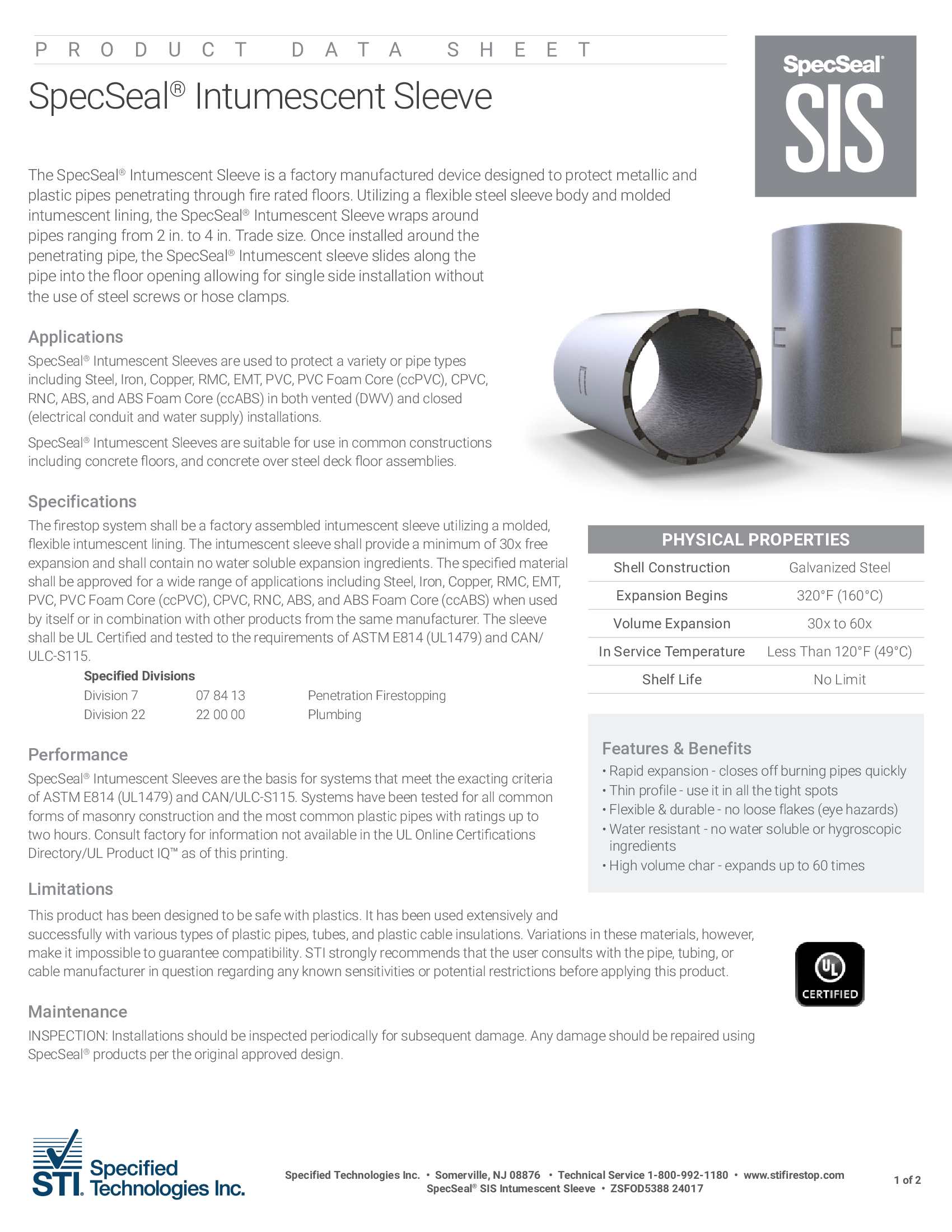

SIS Intumescent Pipe Sleeve
The SpecSeal Intumescent Sleeve is a factory manufactured device designed to protect metallic and plastic pipes penetrating through fire rated walls and floors.

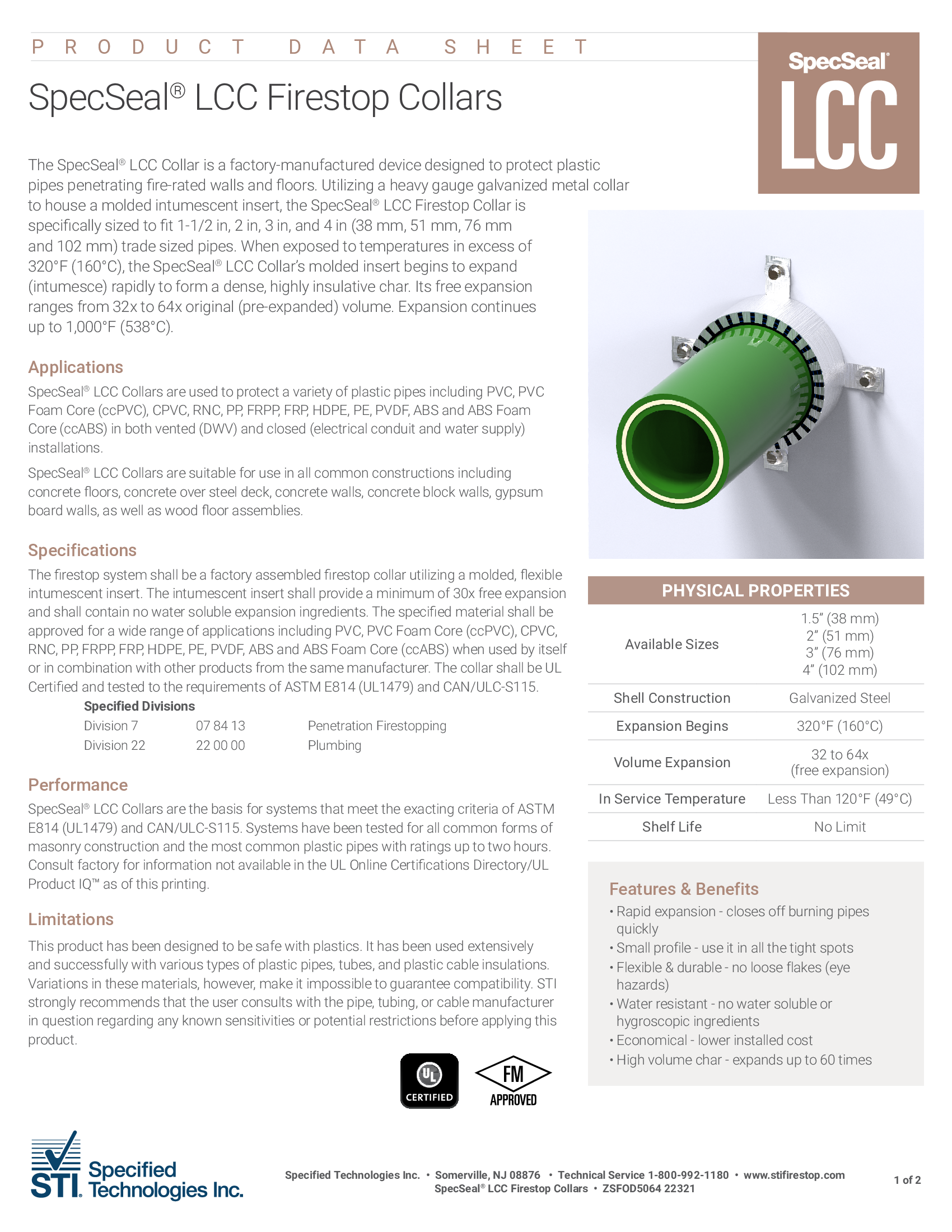

LCC Firestop Pipe Collars
SpecSeal LCC Firestop Collars are factory-manufactured firestop devices sized to plastic pipes of up to 4 in. trade Size.

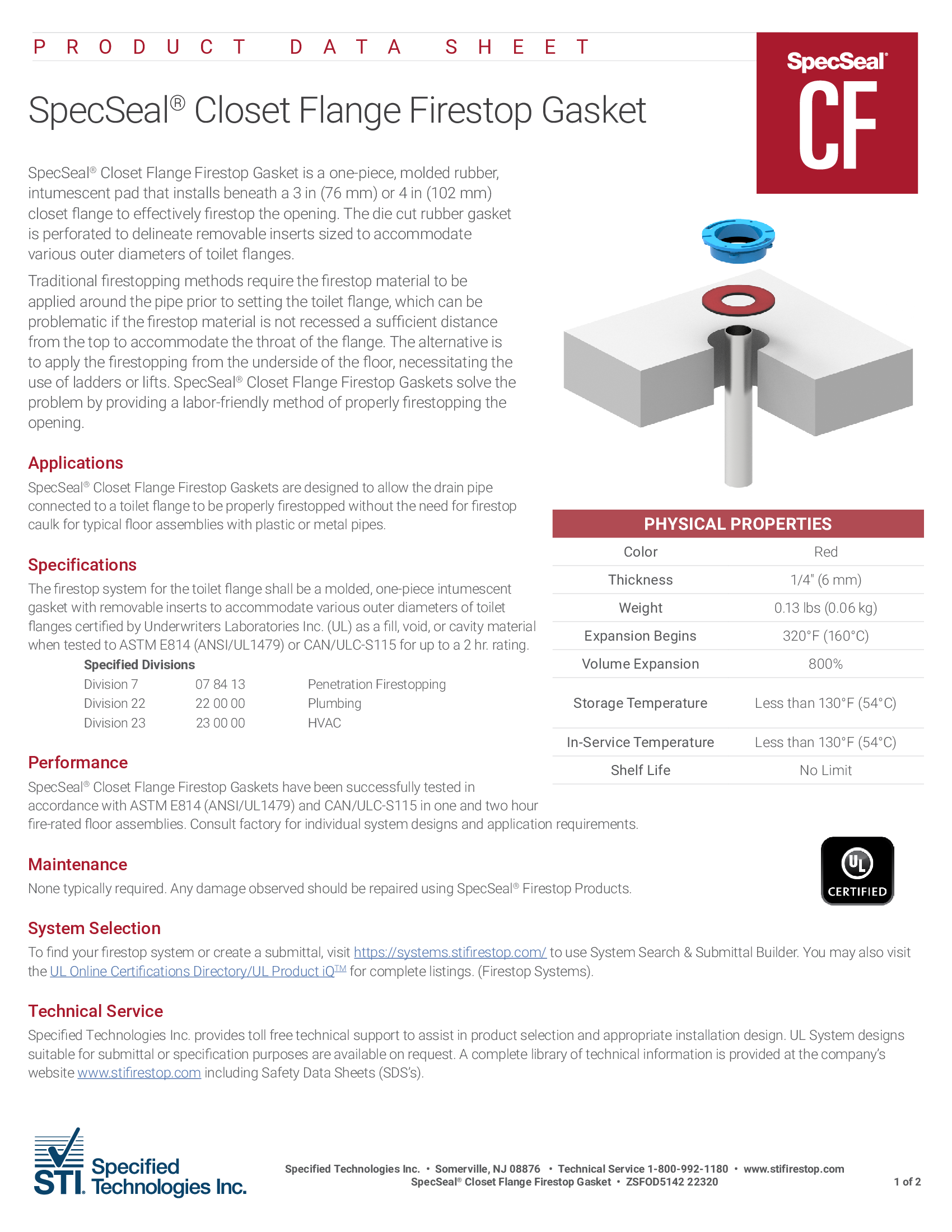

CF Closet Flange Gasket
SpecSeal Closet Flange Firestop Gaskets are one-piece, molded rubber, intumescent pads that install beneath a 3" (76 mm) or 4" (102 mm) closet flange to effectively firestop the opening.
