SpeedFlex TTG Track Top Gasket

SpeedFlex TTG Track Top Gasket
SpeedFlex TTG Track Top Gasket
SpeedFlex TTG Track Top Gasket
SpeedFlex TTG Track Top Gasket
SpeedFlex TTG Track Top Gasket

SpeedFlex TTG Track Top Gasket

SpeedFlex TTG Track Top Gasket makes short work of construction joints in gypsum board construction. TTG eliminates the need for firestop sealants or sprays by firestopping as the wall is constructed. Track Top Gasket is easily cut to length with scissors or a sharp knife, installing quick with no waste.

Test Standards ASTM D3273
ASTM E90
ASTM E1966 (UL2079)
ASTM E2307
CAN/ULC-S115
Third Party Approvals

Features

  • Works with any ceiling track
  • Tested for both standard and shaft wall construction
  • Allows for 100% compression and extension

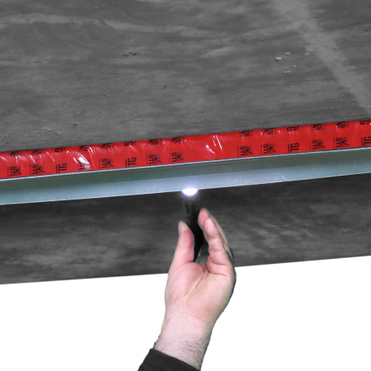

  • Red in color for easy identification and inspection
  • Available in Black to blend into background for exposed joint conditions
Applications
Curtain Wall
Wall-to-Wall
Head-of-Wall
Bottom-of-Wall
Properties
Finished Product
Intumescent
Joint Movement
Low VOC
No Expiration
STC Rating
Smoke Barrier

Specifications

Property Value
Color Red & Black
Core Construction 0.040 inch (1 mm) thick intumescent matrix
Shell Contstruction 3.5 mil Polyethylene
Expansion Ratio 15
In-Service Temperature Less than 130°F (54°C)
L Rating (ANSI/UL2079) Less than 1 CFM/lin ft
STC Rating (ASTM E 90-09) Up to 56 (Relates to specific construction)
Movement Capabilities (ANSI/UL2079/ASTM E1966) Up to 100%
Shelf Life No Limit
Accelerated Aging Greater than 30 Years

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
TTG250J 730573082508 TTG for 2.5" (63.5 Mm) J-Runners - 150 Foot (45.7 Meter) Roll 1 1 16.57 lbs TTG for 2.5
TTG350F 730573083550 TTG w/Folded Legs for 3-1/2" (89 Mm) To 3-5/8" (92 Mm) Ceiling Track - 2X 80.5 Foot (24.5 Meter) Rolls 1 1 16.58 lbs TTG w/Folded Legs for 3-1/2
TTG400J 730573084007 TTG for 4" (102 Mm) J-Runners - 150 Foot (45.7 Meter) Roll 1 1 lbs TTG for 4
TTG600F 730573086049 TTG w/Folded Legs for 6" (152 Mm) Ceiling Track - 2X 80.5 Foot (24.5 Meter) Rolls 1 1 24.5 lbs TTG w/Folded Legs for 6
TTG600J 730573086025 TTG for 6" (152 Mm) J-Runners - 150 Foot (45.7 Meter) Roll 1 1 23.6 lbs TTG for 6
TTG350F2 730573950937 TTG w/Folded Legs for 3.5" (89 mm) to 3-5/8" (92 mm) ceiling track with foam, 40.5 ft. (12.3 meter) roll - Red Poly 1 1 5.35 lbs TTG w/Folded Legs for 3.5
TTG350F2-BK 730573950944 TTG w/Folded Legs for 3.5" (89 mm) to 3-5/8" (92 mm) ceiling track with foam, 40.5 ft. (12.3 meter) roll - Black Poly 1 1 5.35 lbs
TTG350F2S 730573951033 TTG w/Folded Legs for 3.5" (89 mm) to 3-5/8" (92 mm) ceiling track with foam, 40.5 ft. (12.3 meter) roll, split - Red Poly 1 1 5.5 lbs TTG w/Folded Legs for 3.5
TTG350F2S-BK 730573951040 TTG w/Folded Legs for 3.5" (89 mm) to 3-5/8" (92 mm) ceiling track with foam, 40.5 ft. (12.3 meter) roll, split - Black Poly 1 1 5.35 lbs
TTG600F2 730573950999 TTG w/Folded Legs for 6" (152 mm) ceiling track with foam, 40.5 ft. (12.3 meter) roll - Red Poly 1 1 6.6 lbs TTG w/Folded Legs for 6
TTG600F2-BK 730573951002 TTG w/Folded Legs for 6" (152 mm) ceiling track with foam, 40.5 ft. (12.3 meter) roll - Black Poly 1 1 6.6 lbs
TTG250J2 730573951019 TTG for 2.5" (63.5 mm) J-Runners with foam, 40.5 ft. (12.3 meter) roll - Red Poly 1 1 6.5 lbs TTG for 2.5
TTG250J2-BK 730573951026 TTG for 2.5" (63.5 mm) J-Runners with foam, 40.5 ft. (12.3 meter) roll - Black Poly 1 1 6.5 lbs
TTG400J2 730573951057 TTG for 4" (102 mm) J-Runners with foam, 40.5 ft. (12.3 meter) roll - Red Poly 1 1 7.25 lbs TTG for 4
TTG400J2-BK 730573951064 TTG for 4" (102 mm) J-Runners with foam, 40.5 ft. (12.3 meter) roll - Black Poly 1 1 7.25 lbs
TTG600J2 730573950975 TTG for 6" (152 mm) J-Runners with foam, 40.5 ft. (12.3 meter) roll - Red Poly 1 1 9.25 lbs TTG for 6
TTG600J2-BK 730573950982 TTG for 6" (152 mm) J-Runners with foam, 40.5 ft. (12.3 meter) roll - Black Poly 1 1 9.25 lbs
SpeedFlex TTG Track Top Gasket
SpeedFlex® TTG Track Top Gasket makes short work of construction joints in gypsum board construction. TTG eliminates the need for firestop sealants or sprays by firestopping as the wall is constructed. Track Top Gasket is easily cut to length with scissors or a sharp knife, installing quick with no waste. Works with any ceiling track Tested for both standard and shaft wall construction Allows for 100% compression and extension Red in color for easy identification and inspection
