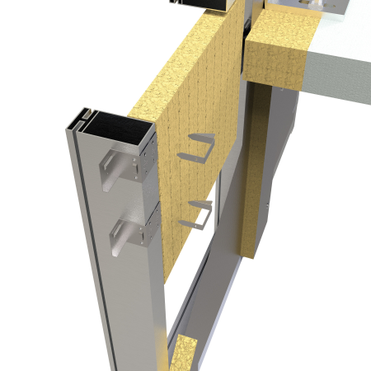

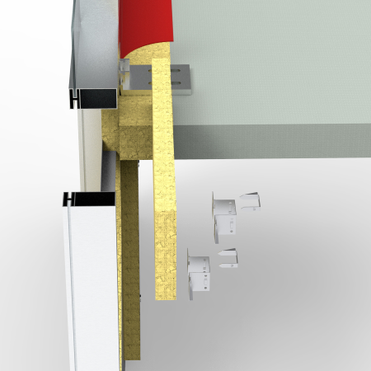

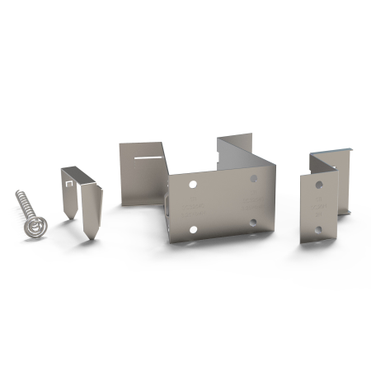

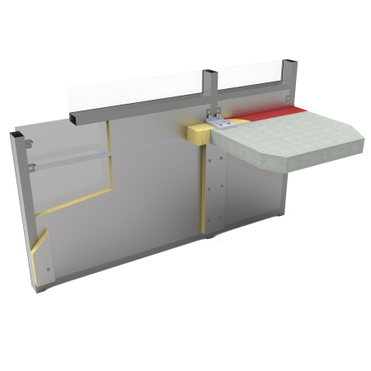

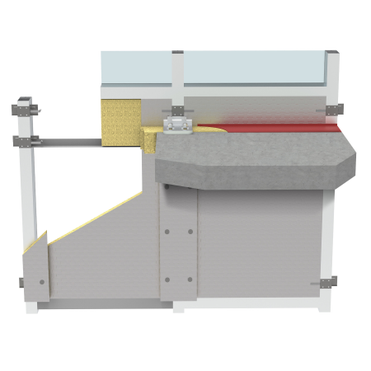

SpecSeal Quick Clip Field Installation System is designed to accelerate the installation of curtain wall insulation for perimeter fire containment systems. The system's unique U-brackets clip onto the mullions without direct attachment by screws. Additionally, the Z-bracket design accommodates corner and non-standard applications. Self-locking fasteners secure the insulation panels in place. The brackets allow the stiffener channel to be eliminated in most insulation applications above 2 inches. If required, the stiffener channel may be locked into place without an additional mechanical attachment.

en-us
Test Standards ASTM E1233
 ASTM E2307
Third Party Approvals
Contact Us
Key Resources
Key Tools

BIM Object(s)

Quick Clip Calculator

Features

  • Eliminates stiffener for most insulation applications above 2 inches
  • Fasteners provide a quicker insulation install compared to screws or weld pins
  • Z-Bracket design accommodates corner and non-standard applications
Applications
Curtain Wall
Properties
Permanent
Finished Product
Light Weight
No Expiration
Zero Maintenance

Specifications

Property Value

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
SA375 730573100264 SpecSeal 3-3/4" Spiral Anchor 1 1000 0.2 lbs SpecSeal 3-3/4
SC20H 730573100103 Quick Clip Z-Bracket 2” (50.8 mm) 1 100 0.11 lbs Quick Clip Z-Bracket 2” (50.8 mm)
SC25020 730573100011 Quick Clip U-Bracket 2” (50.8 mm) 1 100 0.23 lbs Quick Clip U-Bracket 2” (50.8 mm)
SC25030 730573100028 Quick Clip U-Bracket 3” (76.2 mm) 1 100 0.27 lbs Quick Clip U-Bracket 3” (76.2 mm)
SC25040 730573100035 Quick Clip U-Bracket 4” (101.6 mm) 1 100 0.32 lbs Quick Clip U-Bracket 4” (101.6 mm)
SC30020 730573100042 Quick Clip U-Bracket 2” (50.8 mm) 1 100 0.24 lbs Quick Clip U-Bracket 2” (50.8 mm)
SC30030 730573100059 Quick Clip U-Bracket 3” (76.2 mm) 1 100 0.29 lbs Quick Clip U-Bracket 3” (76.2 mm)
SC30040 730573100066 Quick Clip U-Bracket 4” (101.6 mm) 1 100 0.34 lbs Quick Clip U-Bracket 4” (101.6 mm)
SC30H 730573100110 Quick Clip Z-Bracket 3” (76.2 mm) 1 100 0.14 lbs Quick Clip Z-Bracket 3” (76.2 mm)
SC40H 730573100127 Quick Clip Z-Bracket 4” (101.6 mm) 1 100 0.16 lbs Quick Clip Z-Bracket 4” (101.6 mm)
SB2020 730573100257 Quick Clip Fastener 2" x 2" Saddle Bracket Staple 1 100 0.04 lbs Quick Clip Fastener 2
SB2040 730573952221 Quick Clip Fastener 2" x 4" Saddle Bracket Staple 1 100 0.07 lbs
SC50H 730573952238 Quick Clip Z-Bracket 5” (127 mm) 1 100 0.18 lbs
SC60H 730573952245 Quick Clip Z-Bracket 6” (152.4 mm) 1 100 0.2 lbs
SpecSeal Quick Clip Field Installation System

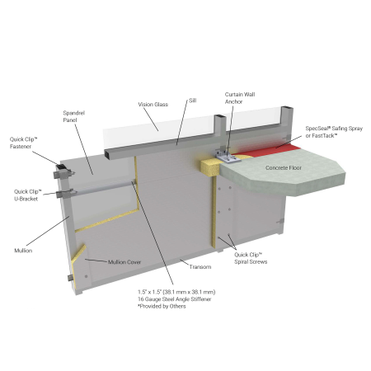

SpecSeal Quick Clip Field Installation System is designed to accelerate the installation of curtain wall insulation for perimeter fire barrier systems. The system's unique U-brackets clip onto the mullions without direct attachment by screws to support the curtain wall insulation. Self-locking fasteners secure the insulation panels in place. Each U-bracket has a receiving slot to lock an "L-shaped" stiffener channel in place without the need for mechanical attachment by screws.
