SpecSeal SSP Putty & Putty Pad

SpecSeal SSP Putty & Putty Pad
SpecSeal SSP Putty & Putty Pad
SpecSeal SSP Putty & Putty Pad
SpecSeal SSP Putty & Putty Pad

SpecSeal SSP Putty & Putty Pad

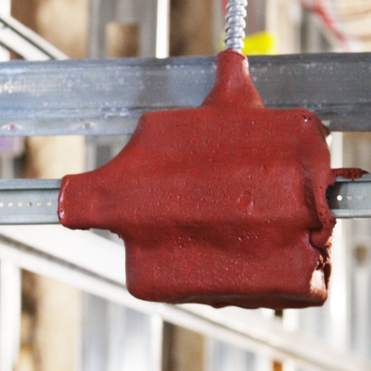

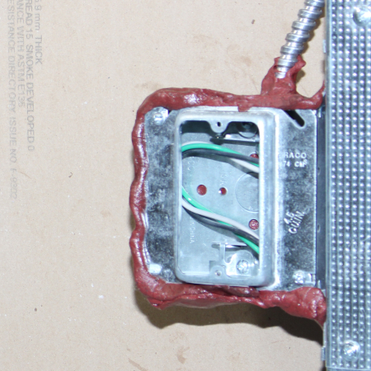

SpecSeal SSP Firestop Putty excels at sealing cabling penetrations and outlet boxes. SSP Putty is non-hardening and easily hand works around grouped cabling penetrations forming a re-enterable seal allowing for future work. When applied with outlet boxes, SSP Putty easily works into voids and seams forming a continuous seal against fire and the products of combustion.

Test Standards ASTM E90
ASTM E119 (UL263)
ASTM E814 (UL1479)
ASTM G21
CAN/ULC-S115
NFPA 251
Third Party Approvals

Features

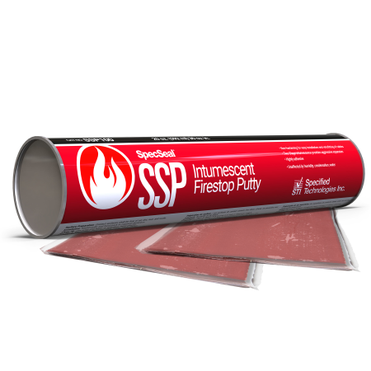

  • Available in tubes or preformed pads
  • Remains pliable and workable for the lifetime of the installation
  • Acoustically tested
  • Will not harden overtime!
Applications
Cables

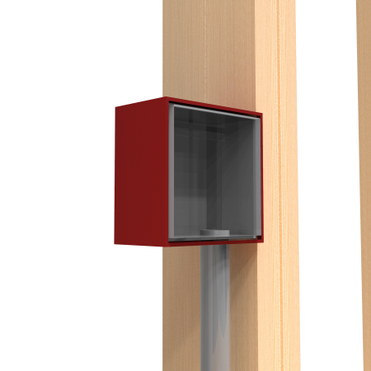

Electrical Box
Metallic Pipe
Properties
Intumescent
Low VOC
No Expiration
Re-Enterable
STC Rating
Smoke Barrier

Specifications

Property Value
Color Red
Density 1.45 kg/L (12.08 lb/gal)
Solids Content 100%
Mold & Fungus Growth Rating (ASTM G21) 1
Volume Expansion Greater than 500% (free expansion)
Expansion Begins 230°F (110°C)
In Service Temperature 10°F (-23°C) to 120°F (49°C)
Installation Temperature Less than 100°F (38°C)
STC Rating (ASTM E 90-04/ASTM C919) 62 (Relates to Specific Construction)
VOC 0 g/L*
Notes *Per SCAQMD Rule 1168 (EPA Method 24)

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
SSP100 730573021002 Series SSP Firestop Putty 36 Cu. In. Tube 1 6 2.3 lbs Series SSP Firestop Putty 36 Cu. In. Tube
SSP28 730573021019 Series SSP Firestop Putty 24 Cu. In. Stick 1 25 1.42 lbs Series SSP Firestop Putty 24 Cu. In. Stick
SSP4S 730573022009 Series SSP Firestop Putty Pad 7.25" x 7.25" x 3/16" 1 20 0.65 lbs Series SSP Firestop Putty Pad 7.25
SSP4S-P 730573022016 Series SSP Firestop Premium Putty Pad 7.25" x 7.25" x 3/16" 1 20 0.64 lbs Series SSP Firestop Premium Putty Pad 7.25
SSP9S 730573023006 Series SSP Firestop Putty Pad 9.00" x 9.00" x 3/16" 1 20 1 lbs Series SSP Firestop Putty Pad 9.00
SpecSeal SSP Putty & Putty Pad
SpecSeal SSP Firestop Putty excels at sealing cabling penetrations and outlet boxes. SSP Putty is non-hardening and easily hand works around grouped cabling penetrations forming a re-enterable seal allowing for future work. When applied with outlet boxes, SSP Putty easily works into voids and seams forming a continuous seal against fire and the products of combustion.
