SpecSeal SSM Firestop Mortar

SpecSeal SSM Firestop Mortar
SpecSeal SSM Firestop Mortar
SpecSeal SSM Firestop Mortar
SpecSeal SSM Firestop Mortar

SpecSeal SSM Firestop Mortar

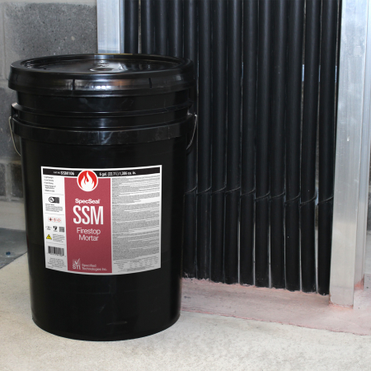

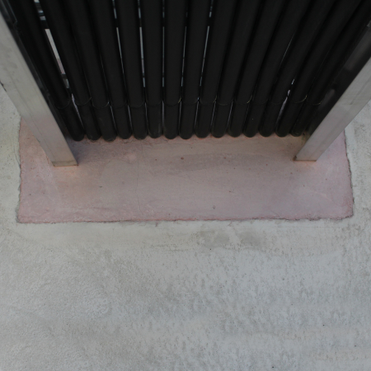

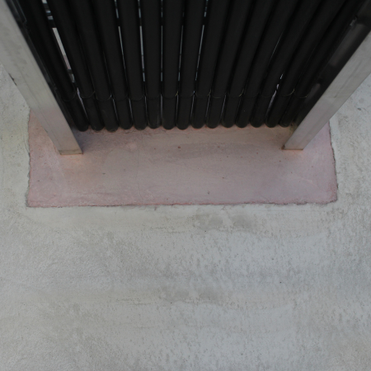

SpecSeal SSM Firestop Mortar is a light-weight cost conscious solution for oversized openings in concrete walls and floors. Once mixed with water, SpecSeal Mortar forms a light weight, low density slurry that easily applies into concrete walls and floors. SpecSeal Mortar cures quickly and will not spall or crack due to freezing or changes in temperature.

en-us
Test Standards ASTM E814 (UL1479)
 CAN/ULC-S115
Third Party Approvals
Contact Us
Key Resources
Key Tools

BIM Object(s)

Features

  • Can be poured, pumped, or troweled in place
  • Durable permanent seal
  • Re-penetrable allowing for future penetrants
  • Partners with other SpecSeal Firestop Products
Applications
Blank Openings
Busway
Cables
Cable Tray
Metallic Pipe
Multiple Penetrations
Properties
Permanent
Autobonding
Light Weight
Low VOC
No Expiration
Paintable
Quick Dry
Re-Enterable
Smoke Barrier

Specifications

Property Value
Color Pale Red
Density Mixed (Wet) 53 to 80 lb/cu. ft = 7.1-10.7 lb/gal (0.85-1.28 kg/L)
Density (Dry Mortar) 24 to 26 lb/cu. ft = 3.21-3.4 lb/gal (0.38-1.42 kg/L)
Flame Spread 0*
Smoke Developement Less than 5*
Ratio of Water/Mortar 17.4/22 to 22/22
Yield (Per 22 lb.) 1,250 cu. in (20.5 L) to 1,400 cu. in (22.9 L)
Open Time 30 Minutes working time
Application Temperature 35°F (2°C) to 100°F (38°C)
In Service Temperature -10°F (-23°C) to 200°F (93°C)
Notes *Tested to ASTM E84 (UL723) at 14% surface coverage (modified test for sealants and caulks)

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image

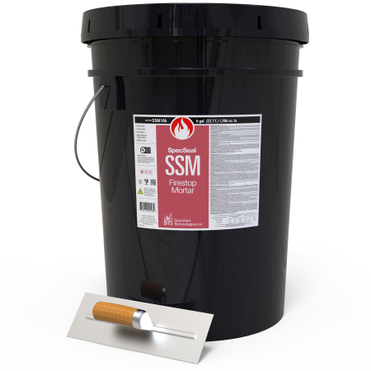

SSM106 730573041062 Firestop Mortar 6 Gallon Pail (22 Lbs./10 Kilos) 1 1 lbs Firestop Mortar 6 Gallon Pail (22 Lbs./10 Kilos)
SSM22B 730573042007 Firestop Mortar Bag (22 Lbs./10 Kilos) 1 1 lbs
SpecSeal SSM Firestop Mortar
SpecSeal SSM Firestop Mortar is a light-weight cost conscious solution for oversized openings in concrete walls and floors. Once mixed with water, SpecSeal Mortar forms a light weight, low density slurry that easily applies into concrete walls and floors. SpecSeal Mortar cures quickly and will not spall or crack due to freezing or changes in temperature.
