SpecSeal Cast-in Firestop Device

SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device
SpecSeal Cast-in Firestop Device

SpecSeal Cast-in Firestop Device

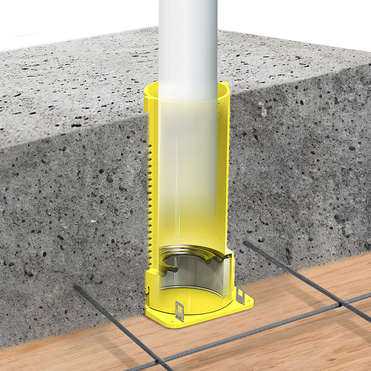

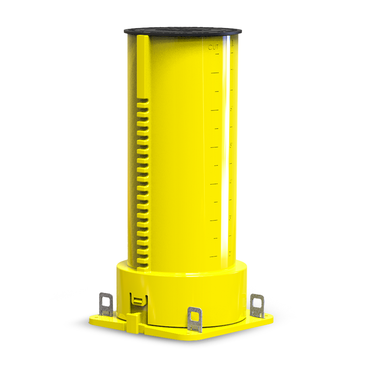

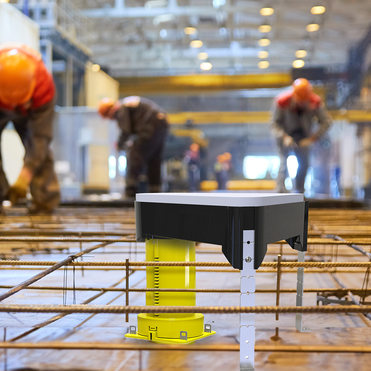

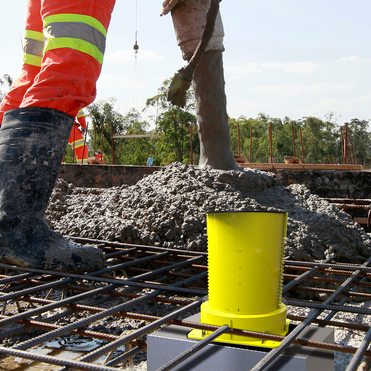

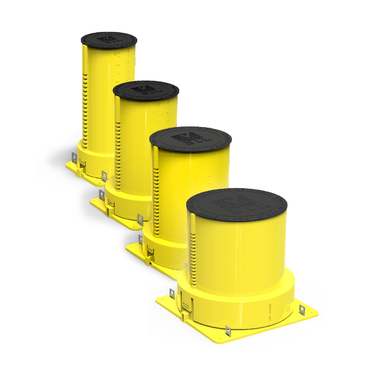

SpecSeal® CID Cast‑In Firestop Devices eliminate the need for core drilling and post‑pour firestopping by integrating a sleeve, concrete form, and firestop system into a single, easy‑to‑install solution. Designed for efficiency during construction, these Cast‑In firestop devices streamline installation before the concrete pour, reducing time to install, cost, and jobsite complexity. Available in multiple sizes and heights, SpecSeal Cast‑In Devices accommodate penetrants up to 6" trade size and support concrete slab depths up to 36 inches. Engineered for reliability and code compliance, they provide a clean, consistent, and high‑performance firestopping method for vertical penetrations in new construction projects.

en-us
Test Standards ASTM E90
 ASTM E814 (UL1479)
 CAN/ULC-S115
Third Party Approvals
Contact Us
Key Resources
Key Tools

BIM Object(s)

Interactive 3D Model

Features

  • Tested for combustible and non-combustible penetrants
  • Variety of accessories available for any field condition
  • Incorporates built in smoke and water resistant seal
  • Usable in concrete floors as thin as 2-3/4!
Applications
Blank Openings
Cables
Ductwork
Metallic Pipe
Multiple Penetrations
Plastic Pipe
Properties
Permanent
Finished Product
Intumescent
Light Weight
Low VOC
No Expiration
Water Resistant
Smoke Barrier

Specifications

Property Value
Shell Construction Polypropylene
Tube and Cap Construction Polyethylene
Expansion Begins 320°F (160°C)
Volume Expansion 250x (free expansion)
In Service Temperature Max. 130°F (54°C)
Shelf Life No Limit

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
CD201DK 730573342084 Cast-In Deck Adapter Kit 2" (51mm) Trade Size 1 6 0.55 lbs Cast-In Deck Adapter Kit 2
CD201FD 730573342435 Cast-In Firestop Device Floor Drain 2" (51mm) Trade Size 1 12 0.8 lbs Cast-In Firestop Device Floor Drain 2
CD201T 730573342091 Cast-In Firestop Device Tub Box Kit 2" (51mm) Trade Size 1 1 3.62 lbs Cast-In Firestop Device Tub Box Kit 2

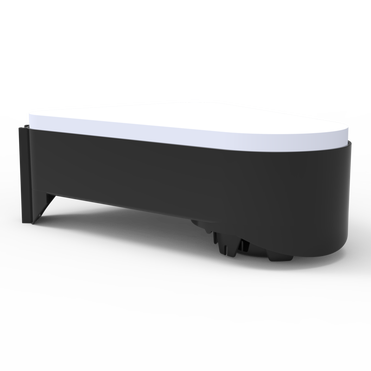

CD23T 730573342404 Cast-In Devices Tub Box Kit 2" & 3" 1 1 1.88 lbs Cast-In Devices Tub Box Kit 2
CD300A 730573343050 Cast In Device Aerator Adapter - 3 in. 1 6 1.6 lbs Cast In Device Aerator Adapter - 3 in.
CD301DK 730573343098 Cast-In Deck Adapter Kit 3" (76mm) Trade Size 1 6 0.95 lbs Cast-In Deck Adapter Kit 3

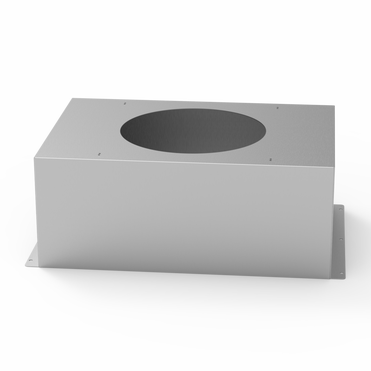

CD400A 730573344057 Cast In Device Aerator Adapter - 4 in. 1 6 1.8 lbs Cast In Device Aerator Adapter - 4 in.
CD401DK 730573344101 Cast-In Deck Adapter Kit 4" (102mm) Trade Size 1 6 0.95 lbs Cast-In Deck Adapter Kit 4
CD601DK 730573343043 Cast-In Deck Adapter Kit 6" (152mm) Trade Size 1 6 2.22 lbs Cast-In Deck Adapter Kit 6
CD201GW 730573950845 Cast-In Firestop Device 2" (51mm) Trade Size - Up to 8" Pours 1 12 0.6 lbs Cast-In Firestop Device 2
CD301GW 730573951217 Cast-In Firestop Device 3" (76mm) Trade Size - Up to 8" Pours 1 12 1.05 lbs Cast-In Firestop Device 3
CD401GW 730573951224 Cast-In Firestop Device 4" (102mm) Trade Size - Up to 8" Pours 1 12 1.37 lbs Cast-In Firestop Device 4
CD601GW 730573951293 Cast-In Firestop Device 6" (152mm) Trade Size - Up to 8" Pours 2.95 lbs Cast-In Firestop Device 6
CD201EK 730573951231 Cast-In Firestop Device Extension Tube 2” (51 mm) Trade Size - 8" Extension 1 12 0.2 lbs Cast-In Firestop Device Extension Tube 2” (51 mm) Trade Size - 8
CD301EK 730573951248 Cast-In Firestop Device Extension Tube 3” (76 mm) Trade Size - 8" Extension 1 12 0.3 lbs Cast-In Firestop Device Extension Tube 3” (76 mm) Trade Size - 8
CD401EK 730573951255 Cast-In Firestop Device Extension Tube 4” (102 mm) Trade Size - 8" Extension 1 12 0.36 lbs Cast-In Firestop Device Extension Tube 4” (102 mm) Trade Size - 8
CD601EK 730573951309 Cast-In Firestop Device Extension Tube 6” (152 mm) Trade Size - 8" Extension 0.43 lbs Cast-In Firestop Device Extension Tube 6” (152 mm) Trade Size - 8
SpecSeal Cast-in Firestop Device
Eliminate core-drilling and firestop after the concrete pour with SpecSeal CID Cast-In Firestop Devices. SpecSeal Cast-In Devices are a sleeve, concrete form and firestop rolled into a single device.
