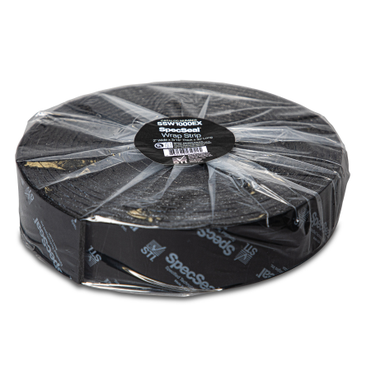

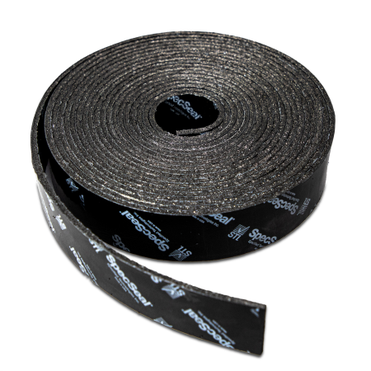

SpecSeal® 1000EX Wrap Strips are highly flexible, elastomeric intumescent firestop wraps designed to protect combustible penetrations in fire‑rated floors and walls. Engineered for superior expansion and ease of installation, these wrap strips deliver reliable fire resistance around nonmetallic pipes and other combustible components. Equally suited for new construction and retrofit applications, SpecSeal 1000EX Wrap Strips provide a code‑compliant, adaptable solution that conforms easily to a wide range of penetrant shapes and sizes, ensuring consistent firestopping performance across various rated assemblies.

en-us
Test Standards ASTM G21
CAN/ULC-S115
Third Party Approvals

Features

  • Rapid expansion - closes off burning penetrants faster
  • High volume char - significant expansion seals off opening
  • Water-resistant - no soluble or hygroscopic ingredients
  • Highly flexible - no foil, easier to install
Applications
Plastic Pipe
Properties
Permanent
Finished Product
Intumescent
Low VOC
No Expiration

Specifications

Property Value
Thickness 3/16" (4.8 mm)
Width 2" (51 mm)
Length (min.) 30' (9.1 m)
Weight (min.) 4.275 lbs (1.93 kg)
Expansion System Single-Stage
Expansion Begins 320°F (160°C)
Mold & Fungus Growth Rating (ASTM G21) 0
Oven Aging No Change 140°F (60°C)
Humidity Exposure No Change 60°C (98% R.H.)
UL Accelerating Aging Pass

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
SSW1000EX 730573950425 Series SSW SpecSeal Wrap Strip, 2" Wide x 3/16" Thick x 30ft Long 1 4 6.78 lbs Series SSW SpecSeal Wrap Strip, 2
SpecSeal 1000EX Wrap Strips
SpecSeal SSW Wrap Strips are available in a variety of sizes and types to tackle any combustible penetration. SSW Wrap Strips are available in 12 ft. rolls as well as individually pre-sized strips to minimize waste and speed up installation. When installed in conjunction with restraining steel, SSW Wrap Strips are able to collapse non-metallic piping of up to 12 in. diameter!
