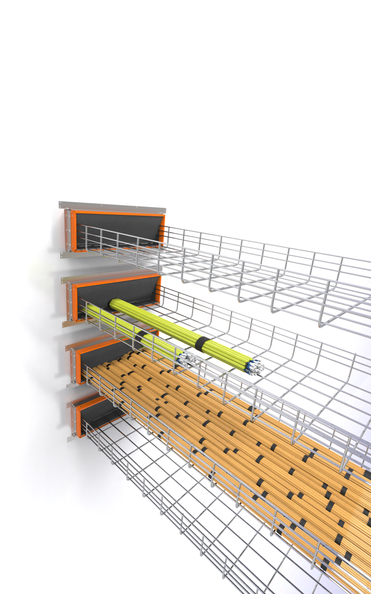

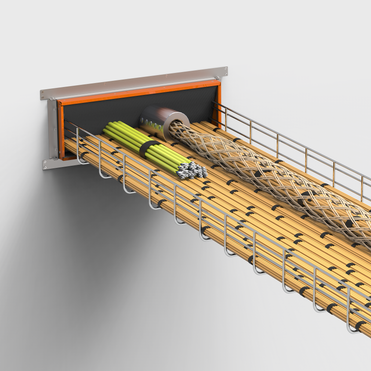

The EZ-Path® ULTRA Fire-Rated Pathway is a high-capacity, UL-certified fire-rated cable pathway engineered for routing large volumes of data, communications, security, and control cabling through fire-resistance-rated wall assemblies. Designed for demanding infrastructure environments, the ULTRA pathway supports oversized cable bundles and cable tray–supported systems where cable density exceeds the capacity of conventional firestop pathways. The device features an integrated intumescent firestop sealing system that automatically activates during fire exposure, expanding to help prevent the passage of flames, smoke, and hot gases through wall penetrations. This advanced design helps maintain the fire-resistance rating of the barrier while supporting evolving cable infrastructure requirements. Unlike traditional firestop methods, the EZ-Path ULTRA allows for easy cable additions, removals, and retrofits without disturbing existing pathway materials or requiring replacement of firestop components. The result is a maintenance-free, code-compliant firestop solution that simplifies moves, adds, and changes while delivering long-term fire protection for mission-critical facilities, data centers, healthcare environments, commercial buildings, and other high-density low-voltage applications.
[Accommodates continuous and discontinuous cable tray systems, Fast, repeatable installation method, Allows for 100% of the tray manufacturer’s advertised cable capacity, Dedicated devices for 12, 18 and 24 wide wire basket cable trays up to 6 high, No additional firestopping required]
Accommodates continuous and discontinuous cable tray systems
Fast, repeatable installation method
Allows for 100% of the tray manufacturer’s advertised cable capacity
Dedicated devices for 12, 18 and 24 wide wire basket cable trays up to 6 high
No additional firestopping required
Applications
Cables
Cable Tray
Properties
Finished Product
Intumescent
No Expiration
Paintable
Re-Enterable
Zero Maintenance
Smoke Barrier
Specifications
Property
Value
Shell Composition
0.059” (1.5 mm) Galvanized Stee
Allowable Cable Fill
100% of Tray Capacity
Fire Resistance Ratings
1 and 2 hour
Expansion Begins
350°F (177°C)
Volume Expansion
30x
In Service Temperature
Less than 130°F (54°C)
Storage Temperature
Less than 130°F (54°C)
Shelf Life
No Limit
Ordering Information
Catalog Number
UPC Number
Description
(UOM) Qty.
Case Qty.
Weight (Each)
EZUTDP612W
730573952825

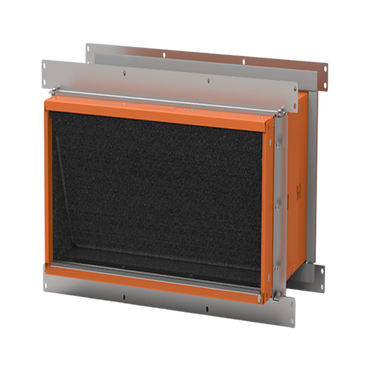

EZ‑Path Ultra Fire‑Rated Pathway Wall Kit, 6" × 12" Tray (Pass‑Through/Terminate). Includes device, wall mounting brackets and labels.
1
1
lbs
EZUTDP618W
730573952825

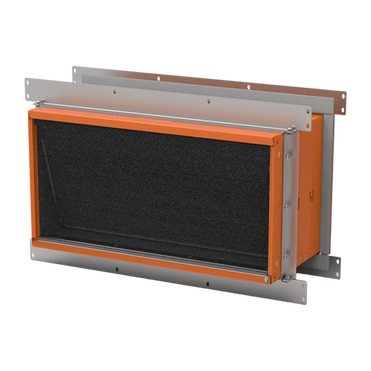

EZ‑Path Ultra Fire‑Rated Pathway Wall Kit, 6" × 18" Tray (Pass‑Through/Terminate). Includes device, wall mounting brackets and labels.
1
1
lbs
EZUTDP624W
730573952825

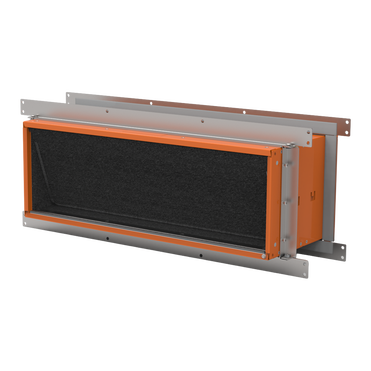

EZ‑Path Ultra Fire‑Rated Pathway Wall Kit, 6" × 24" Tray (Pass‑Through/Terminate). Includes device, wall mounting brackets and labels.
1
1
lbs
The EZ Path® ULTRA Fire-Rated Pathway is a factory-manufactured fire-resistance-rated pathway device designed for high-capacity cable penetrations through fire-resistance-rated walls. The device is intended for installations involving large volumes of data, communications, and control cabling, including cable tray-supported systems where cable density and bundle size exceed typical pathway applications
EZ-Path ULTRA Fire-rated Pathway
The EZ Path® ULTRA Fire-Rated Pathway is a factory-manufactured fire-resistance-rated pathway device designed for high-capacity cable penetrations through fire-resistance-rated walls. The device is intended for installations involving large volumes of data, communications, and control cabling, including cable tray-supported systems where cable density and bundle size exceed typical pathway applications
