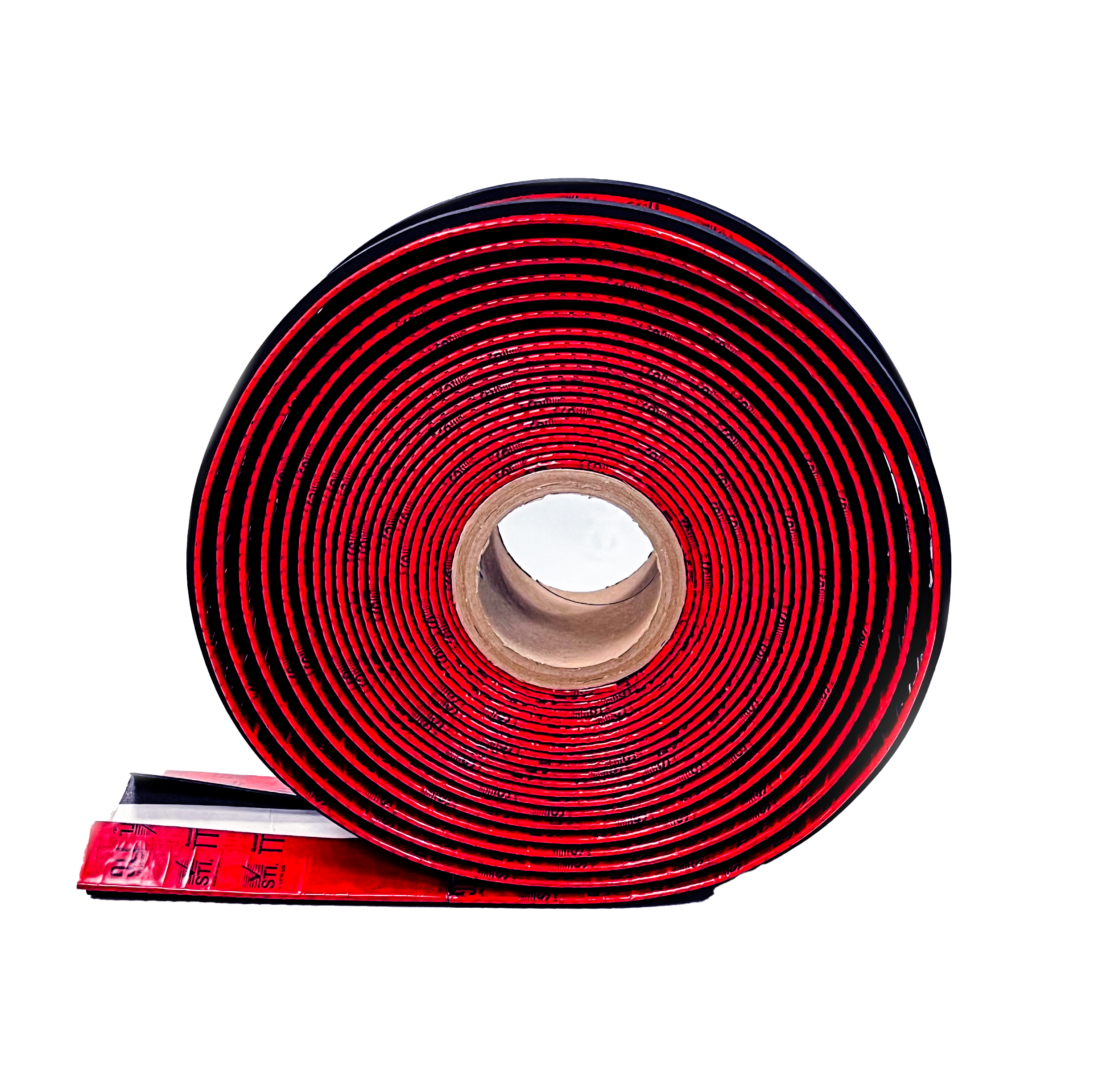

The Original Intumescent Joint Gasket
Track Top Gasket (TTG) is the original field applied intumescent joint gasket that eliminates the need for packing joints and sealing with caulk or spray. TTG's thin profile applies over steel ceiling tracks, floor runners, and vertical studs firestopping construction joints as the wall is being built.
Track Top Gasket can be cut with simple hand tools to exactly match your framing length and width, eliminating wasted material. Additionally, TTG has no cure process and releases no Volatile Organic Compounds (VOCs) making it one of the greenest and fastest rate of application firestopping solutions for addressing interior construction joints in gypsum board walls.

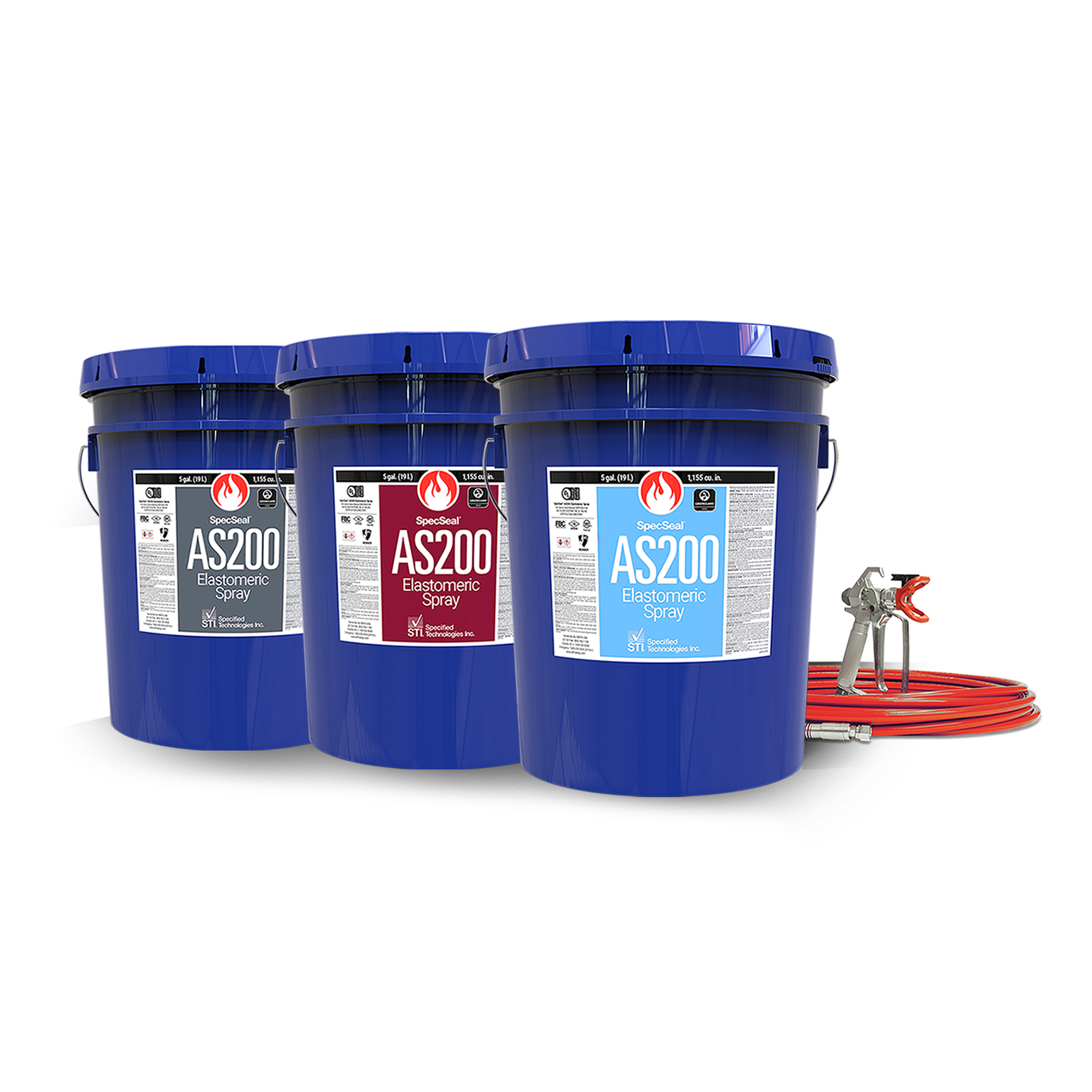

Versatile Elastomeric Spray
Our SpecSeal® AS200 Elastomeric Spray has been the benchmark standard for top-of-wall sprays for more than 15 years. The easy-to-spray formula and high-bridging capabilities of AS200 won’t soak into mineral wool, and it stays put and won’t run down the wall.
- Applied with airless spray equipment
- Available in Pale Blue, White, and Brick Red color
- Compatible with Spray Applied Fire Resistive Materials (SFRM)
- Highly flexible to accommodate for dynamic joint conditions
- Tested for up to 4 Hour fire resistance rating when tested to ASTM E1966/UL 2079
- FBC® System Compatible with Lubrizol® CPVC Piping Systems
High Movement Elastomeric Sealant
SpecSeal® ES Elastomeric Sealant is the go to solution for narrow width high movement joint conditions. ES Sealant is formulated for easy workability into joint conditions providing a resilient seal that is up to the rigors of fire exposure while accommodating for up to 25% joint deflection.
- Available in 10.1 and 20 ounce cartridges, 29 ounce sausages, and 5 gallon pails
- Available in Pale Blue and Brick Red color
- Non-tapered buckets for ease of bulk loading
- Highly flexible to accommodate for dynamic joint conditions
- Compatible with AS200 Spray for repairs and touch up work
Multi Purpose Endothermic Sealant
SpecSeal® LC Endothermic Sealant is a latex based sealant formulated for addressing fire-rated construction joints as well as sealing non-combustible penetrations. SpecSeal® LC Sealant releases chemically bound moisture under fire exposure, resisting the passage of smoke and flame while resisting temperature rise.
- Packed in 10.1 and 20 ounce cartridges, 29 ounce sausages, and 5 gallon pails
- Available in White and Brick Red colors
- Non-tapered buckets for ease of bulk loading
- Tested for use in Joint conditions as well as Penetrations
- FBC® System Compatible with Lubrizol® CPVC Piping Systems

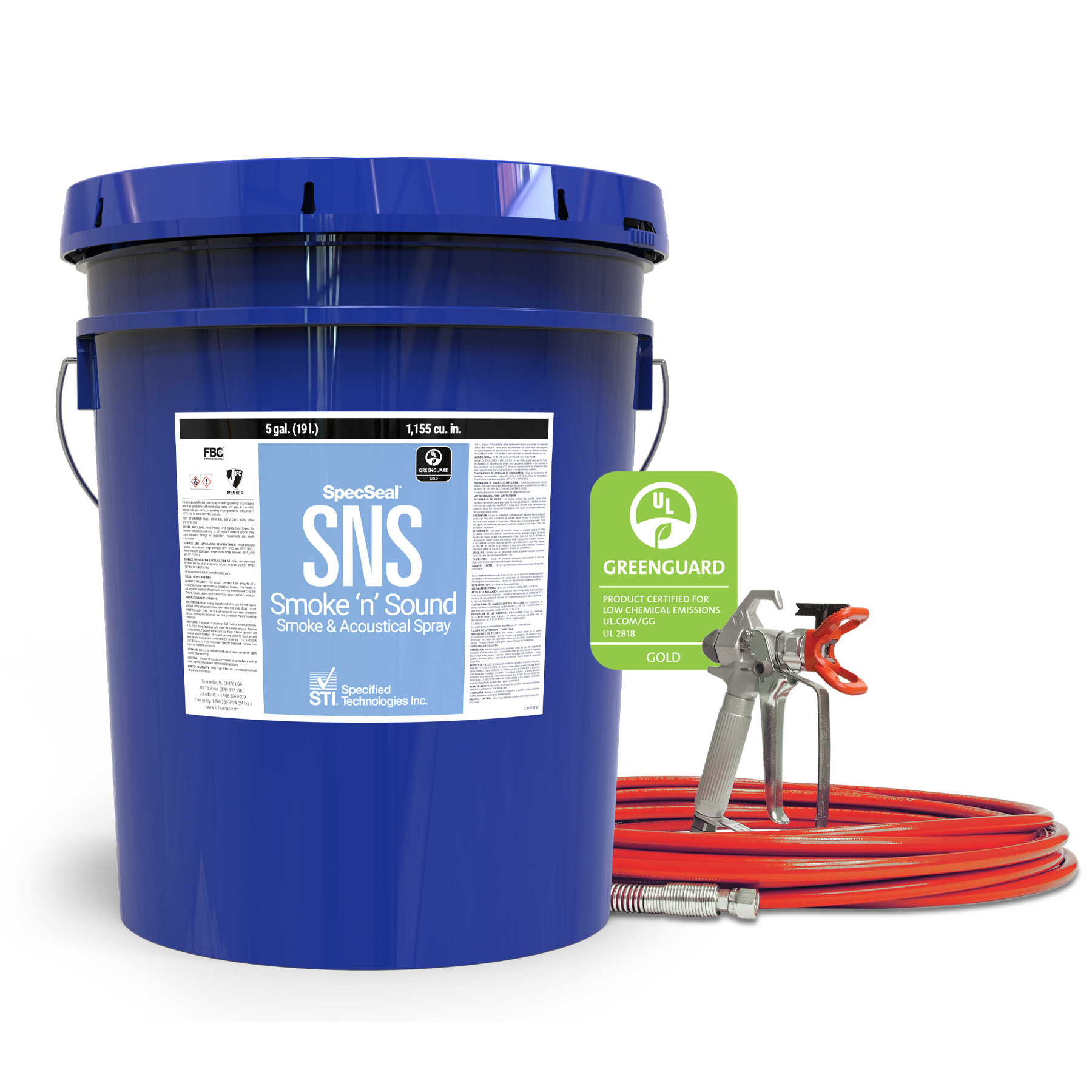

Smoke 'N' Sound Spray
SpecSeal® Smoke 'N' Sound Spray takes the ease of application and high performance you expect in our fire-rated sprays to your non-fire-rated smoke and acoustical partitions. SpecSeal® SNS products when used in conjunction with our fire-rated solutions to provide consistency of performance, application experience, and protection across barrier types.
- Provides exceptional Leakage and Acoustical protection in smoke partitions
- Chemically compatible with SNS Sealant for repairs and touch up work
- Partners with fire-rated SpecSeal® Products providing continuity of protection

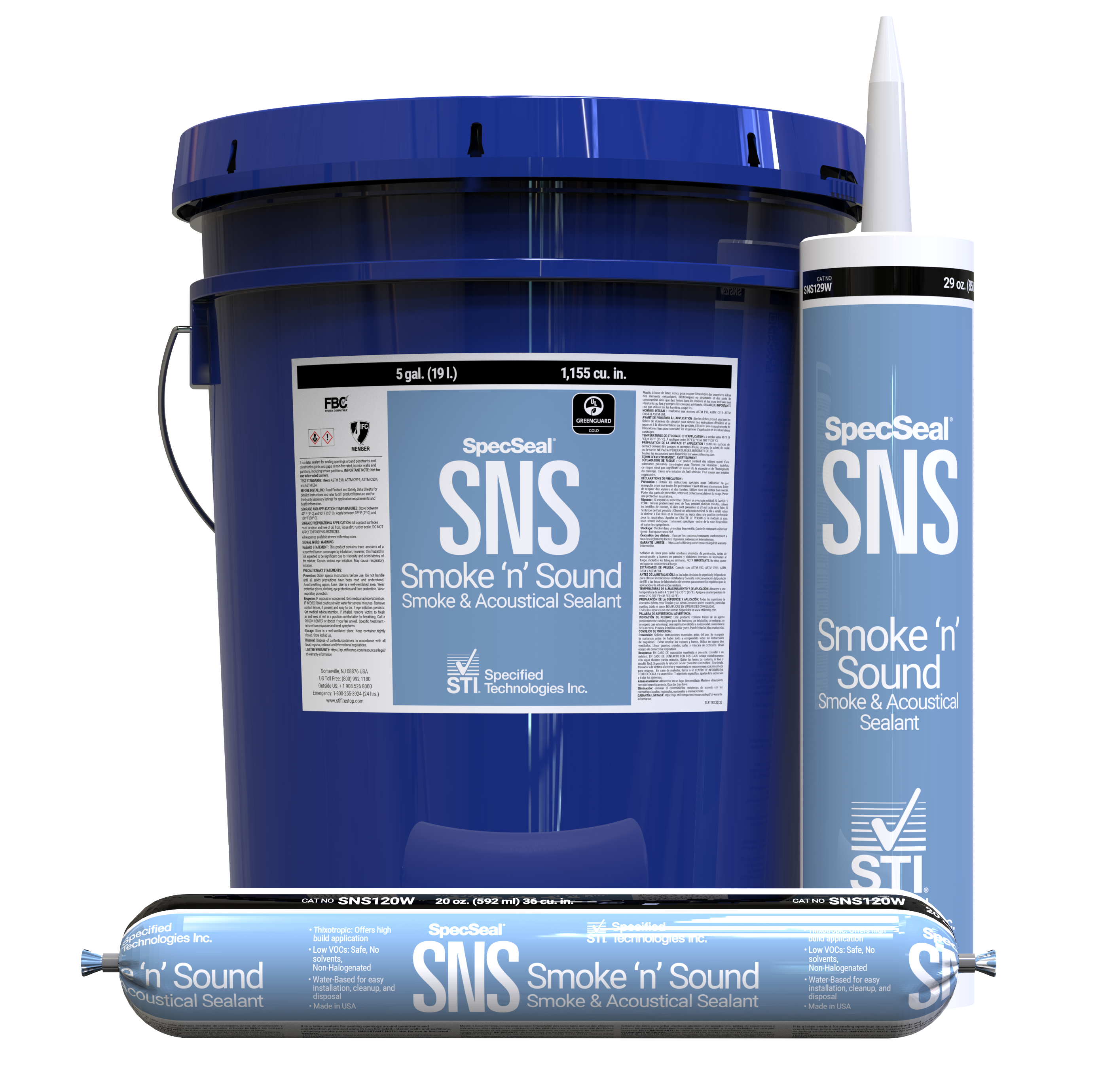

Smoke 'N' Sound Sealant
SpecSeal® Smoke 'N' Sound Sealant takes the ease of application and high performance you expect in our fire-rated sealants to your non-fire-rated smoke and acoustical partitions. SpecSeal® SNS products when used in conjunction with our fire-rated solutions to provide consistency of performance, application experience, and protection across barrier types.
- Provides exceptional Leakage and Acoustical protection in smoke partitions
- Chemically compatible with SNS Spray for repairs and touch up work
- Partners with fire-rated SpecSeal® Products providing continuity of protection
Ease of System Selection and Submittal Generation
Guided search for finding the right firestop system for your condition and building Firestop Submittals for submission to your AHJ.
- Find firestop systems on your phone, tablet, or the web
- Streamlined firestop system submittal package
- Integrate user documents, company logos, and Engineering Judgements

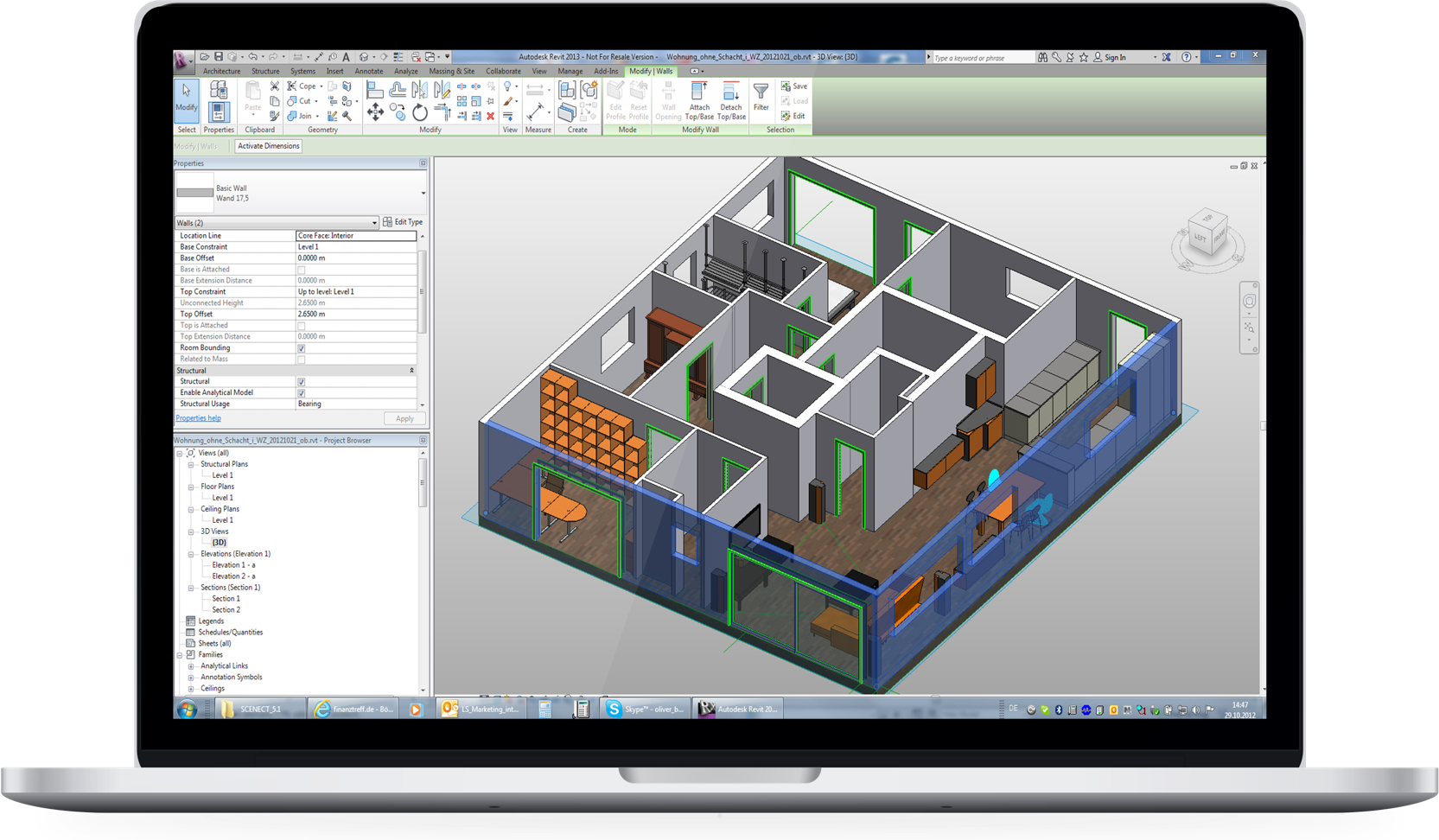

Joint Design and Collaboration in Revit
Firestop Clash Management® (FCM) is our Autodesk® Revit® Plugin that takes the guess work out of firestop solution design and selection. Utilizing clash detection and model parameter data, FCM scans your model detecting locations where construction joints and penetrations occur and recommends appropriate firestop systems at these locations. Additionally, FCM places marker and product objects within the model ensuring that system selection are present within the model and accessible to project team members. A complete head-of-wall map can also be automatically generated and exported as a color coded 2D floor plan, taking the guess work out of application on the job site.
- Automates system selection and placement within the mode
- Functions at your workstation, no need to manually export to third party systems/services
- Automate the creation of 2D floor plans with visual indicators of fire-ratings and selected systems
Comprehensive Testing Package
All of our systems are fully tested according to ANSI/UL® 2079, ASTM E1966, ASTM E1399, ULC-S115, and other relevant standards relating to movement and fire testing of joint systems. Addressing common interior joint conditions providing robust seals against smoke and flame with also allowing for dynamic movement.
In conditions where high movement is of concern, SpeedFlex® products on their own or in conjunction with SpecSeal® Sealants & Sprays provide unparalleled movement capabilities as well as unrivaled rate of application.
Our SpecSeal® AS200 Elastomeric Spray and ES Elastomeric Sealant are formulated for compatibility. This is advantageous for situations where a sealant may be preferable to spray and transitions occur such as finished joints or exposed areas. Additionally, touch up work can be performed using a caulk gun.
Systems have been developed for a wide range of movement. Whether for wind-load, thermal, or seismic, we have solutions that work. Our patented SpeedFlex®Joint Profile can be used to provide 100% unencumbered movement with AS200 Elastomeric Spray. The Track Top Gasket (TTG) systems will allow for 100% movement without the need to caulk or spray the head-of-wall joint.
Some construction projects advocate a “no fly zone” to avoid penetrants being routed through head-of-wall joints. However, that complicates the process of firestopping or encumbering the movement capabilities of the joint system. Therefore, we have tested a variety of metal or plastic penetrants in the flute valleys.
AS200 is tested for compatibility with CPVC pipe, a common type of sprinkler pipe. Whether sprinkler pipes penetrate the head-of-wall joint or overspray is a consideration, it is the only spray on the market as part of the Lubrizol’s FBC™ System Compatible program for CPVC pipe.
Tools & Resources
We’ve curated an extensive collection of tools and resources tailored to meet the specific needs of professionals in the industry. Our assortment focuses on functional tools and references for Firestop solutions, providing professionals with the knowledge, guidance, and tools necessary to ensure safety, compliance, and precision in their projects, ultimately enhancing the integrity of their construction work.
- Guided search for finding the right firestop system for your condition and building Firestop Submittals for submission to your AHJ
- Find firestop systems on your phone, tablet, or the web
- Streamlined firestop system submittal package
- Integrate user documents, company logos, and Engineering Judgements
Automatically find firestop systems from within AutoDesk® Revit®
Track fire life safety systems on your project via your tablet, phone, or web browser.
Find any and all LEED Credits associated with our firestop products in one place
See how EZ-Path is the best return on investment cable pathway solution on the market
Determine how many EZ-Path Fire-rated Pathways you need based on cable size and count
These powerful tools guarantee the right systems are selected for the fastest and most cost-effective installation for all your projects.
Simplify with TTG Track Top Gasket
SpeedFlex® TTG Track Top Gasket makes short work of construction joints in gypsum board construction. TTG eliminates the need for firestop sealants or sprays by firestopping as the wall is constructed.
Track Top Gasket
Track Top Gasket (TTG) is a patented thin profile intumescent cover forgypsum wall framing for tracks, runners and studs that is designed toprovide fire, smoke and acoustical ratings for head of wall joints, wall towall joints, bottom of wall joints and perimeter fire-barrier between gypsumwall(s) and concrete.
AS200 Elastomeric Spray Installation
SpecSeal AS200 Elastomeric Spray is a latex-based elastomeric firestop spray for construction joints and perimeter fire barrier applications.
