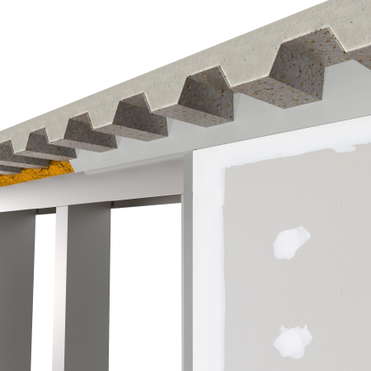

SpecSeal® Smoke ’N’ Sound Acoustical Spray is a high‑performance, water‑based acrylic latex spray formulated to seal gaps, linear joints, and openings associated with non‑fire‑rated penetrations in non-fire-rated wall, floor, and ceiling assemblies. Engineered for fast and uniform application, SNS Acoustical Spray delivers an effective seal that helps limit the passage of smoke, airborne particulates, and sound through construction interfaces. When properly installed, SpecSeal Smoke ’N’ Sound Spray forms a flexible, durable coating that accommodates normal building movement without cracking or loss of adhesion. The material can be applied in thicker sections—up to approximately 5/16 in.—making it suitable for a wide range of construction gaps and acoustic sealing requirements. Ideal for commercial and multifamily projects, SNS Acoustical Spray provides a clean and efficient solution for enhancing air sealing, smoke control, and sound attenuation in non‑fire‑rated assemblies.
Recommended Wet Thickness: From 1/8 in. up to approximately 5/16 in. depending on substrate and conditions
Sag Resistance / Hang: Increased viscosity supports thicker builds with improved hang and control
Substrate Coverage: Effectively covers mineral wool backing materials and uneven or irregular substrates
Flexibility: Maintains elasticity after cure for joints subject to normal building movement
Acoustically tested – reduces noise transmission
Applications
Properties
Autobonding
Low VOC
Paintable
STC Rating
Water Based
Smoke Barrier
Specifications
Property
Value
Movement Capabilities (ASTM E1399)
+/- 12.5%
L-Rating – Penetrations (Modified UL1479)
< 1 CFM / Lin Ft.
L-Rating – Joints (Modified UL2079)
< 1 CFM / Lin Ft.
Mold & Fungus Growth Rating (ASTM G21)
0
Flame Spread
5*
Smoke Development
0*
Drying Time Tack Free
2 Hrs
Dry Through
24 to 48 Hrs
STC Rating (ASTM E90-04/ASTM C919)
61 (Relates to Specific Construction)
VOC Content
30 g/L**
Notes
*Tested to ASTM E84 (UL723) at 14% surface coverage (modified test for sealants and caulks)
**Per SCAQMD Rule 1168 (EPA Method 24)
Ordering Information
Catalog Number
UPC Number
Description
(UOM) Qty.
Case Qty.
Weight (Each)

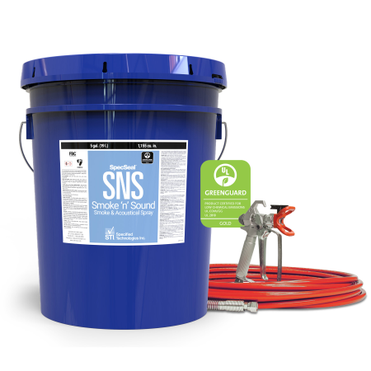

SNS205
730573011553
Series SNS Smoke & Acoustical Spray - 5 Gallon pail 1,155 Cu In. (19.0 L)
1
1
55.48 lbs
