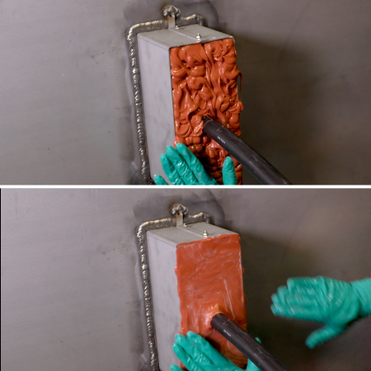

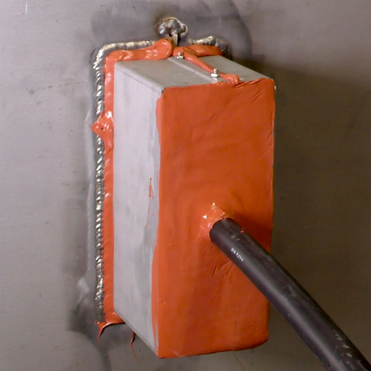

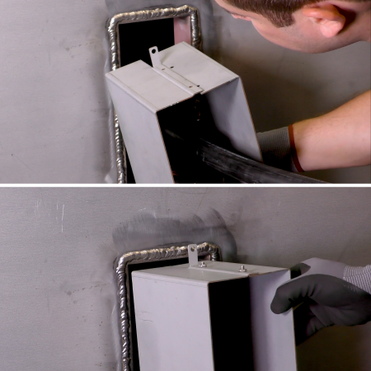

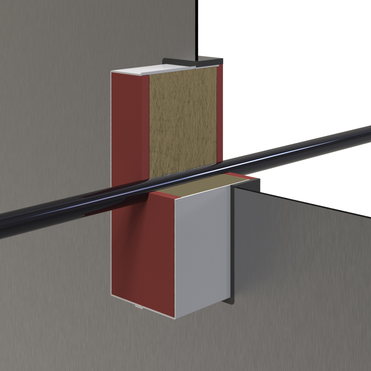

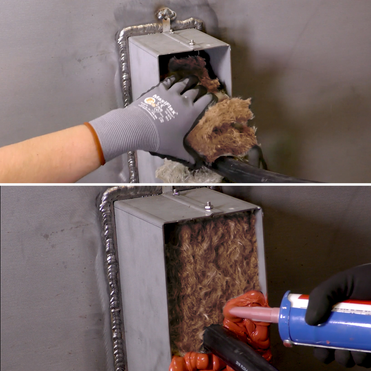

Two-piece steel shell allows for retrofit of block-and-frame transit systems where sealing blocks have been removed. The steel shell is inserted into the existing transit frame and filled with MPACT Filler Blanket and MFS Marine Firestop Sealant to restore non-compliant penetration seals.

Test Standards IMO-FTP

Third Party Approvals

Contact Us

Compare

Features

Designed to fit #6 and #8 transit frames
Quick and easy to install
Two-piece design accommodates existing cables
Meets 2010 IMO FTP Code
Provides Water and Gas-Tightness

Applications

Blank Openings

Cables

Properties

Permanent

Autobonding

Flexible

Light Weight

Low VOC

Paintable

Smoke Barrier

Noise Reduction

Watertight

Specifications

Property	Value
Shell Construction	Pre-galvanized Steel Shell
Shelf Life	No limit
Weight (MMR600)	1.36 kg (3.00 lbs)
Weight (MMR800)	1.59 kg (3.50 lbs)

Ordering Information

Catalog Number	UPC Number	Description	(UOM) Qty.	Case Qty.	Weight (Each)	Image
MMR600	730573440087				24 lbs
MMR601K	730573440124				11 lbs
MMR800	730573440094				27.5 lbs
MMR801K	730573440131				12.1 lbs

MPACT Retrofit Sleeve

Two-piece steel shell allows for retrofit of block-and-frame transit systems where sealing blocks have been removed. The steel shell is inserted into the existing transit frame and filled with MPACT Filler Blanket and MFS Marine Firestop Sealant to restore non-compliant penetration seals.
