Marine Snap-Seal Cable Plugs
Marine Snap-Seal Cable Plugs

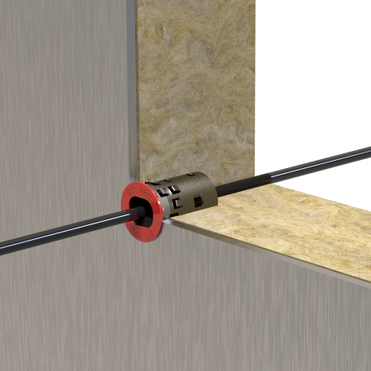

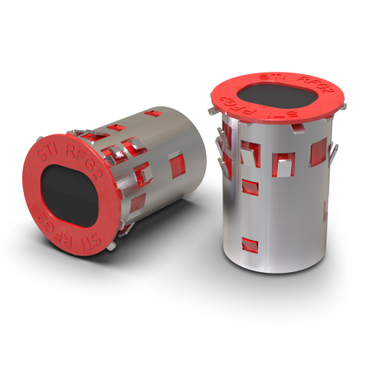

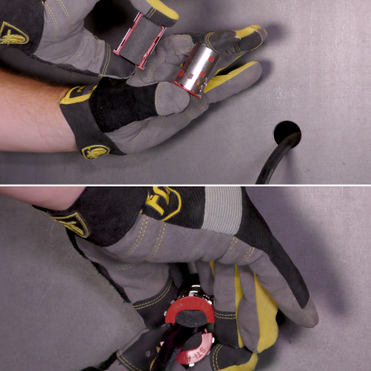

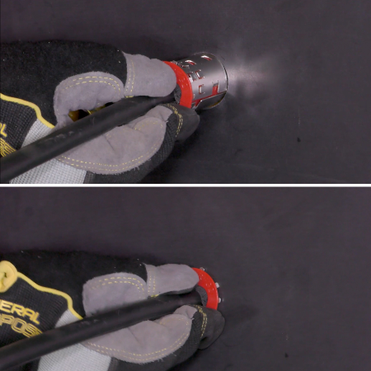

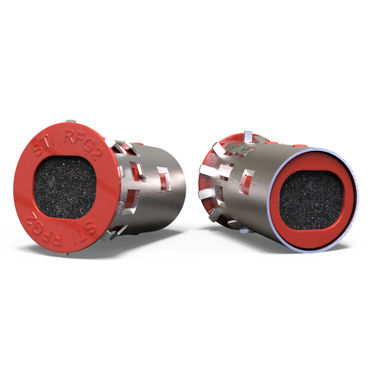

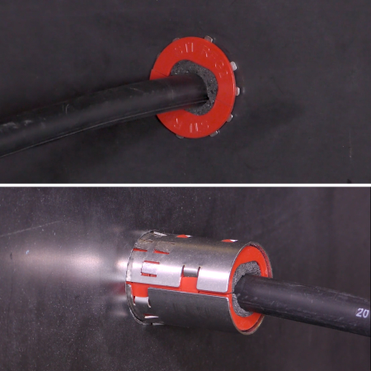

Snap-Seal features a split design for easy installation around new or previously installed penetrants, and was specifically designed for small cables and metallic/plastic tubes. This device is ideally suited for use with surveillance cameras, speakers, lights, data cables and hydraulic lines penetrating steel and aluminum divisions.
Test Standards
IMO-FTP
Third Party Approvals
EnglishFeatures
- Ideal for one or more cables with total O.D. 14 mm (also tested for small metallic and nonmetallic tubes)
- Steel clip design accommodates a range of division thicknesses (4 mm - 12 mm)
- Capable of an IP66 Rating with a thin application of MFS Sealant over the flange (Tested to IEC60529, Edition 2.1)
- Rapid intumescent expansion under fire conditions quickly seals off the path for fire, hot gases, and smoke
Applications
Properties
Specifications
| Property | Value |
|---|---|
| Color | Red Grommet & Silver Clip |
| Shelf Life | No Limit |
| Weight | 26g (0.06 lbs) |
| In-Service Temperature | Less than 54°C (<130°F) |
| VOC Content | No Limit |
| Overall Length | 41.3 mm (1-5/8 in.) |
| Installed Depth (from division surface) | 39.7 mm (1-9/16 in.) |
| Required Opening | Ø28 mm -1.0 mm (Ø1.1 in. -0.04 in.) |
Ordering Information
| Catalog Number | UPC Number | Description | (UOM) Qty. | Case Qty. | Weight (Each) | Image |
|---|---|---|---|---|---|---|
| MSS25 | 730573471050 | 0.45 lbs |
|
