EZ-Path Series 84+ Fire-rated Pathway

EZ-Path Series 84+ Fire-rated Pathway

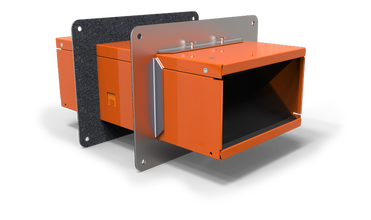

The EZ Path Series 84+ Fire-Rated Pathway is designed for high cable volume conditions through fire-rated walls while eliminating the burden of ongoing maintenance. The Series 84+ incorporates self-sealing intumescent pads that automatically adjust to the installed cable fill without the need for user manipulation. Under fire exposure, the intumescent pads expand and swell resisting the passage of smoke and flame.

Test Standards ASTM E814 (UL1479)
CAN/ULC-S115

Third Party Approvals

Compare

Features

Self Sealing design provides exceptional fire and smoke leakage ratings
Allows for easy Moves, Adds, and Changes
Designed for New and Existing conditions
Cross-Series Compatibility with Series 44+
Greatest achievable cable density of any solution on the market

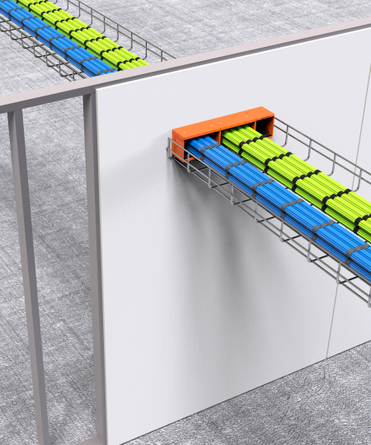

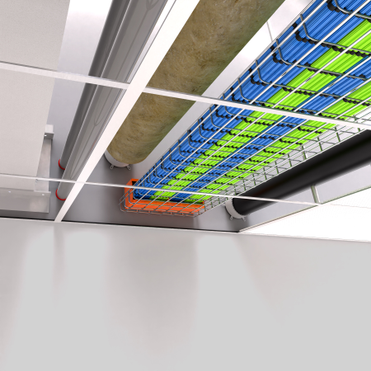

Applications

Cables

Cable Tray

Properties

Finished Product

Intumescent

No Expiration

Paintable

Re-Enterable

Zero Maintenance

Smoke Barrier

Specifications

Property	Value
Shell Composition	0.059" Galvanized Steel (1.5 mm)
Cable Loading Area	24-1/2 sq in (158 sq cm) 7” (178 mm) x 3-1/2” (89 mm)
Allowable Cable Fill	0% to 100% Visual
Fire Resistance Ratings	1 and 2 hour
Expansion Begings	350°F (177°C)
Volume Expansion	15x
Sample Cable Volume - Cat 6	(0.236" OD) 410 (nom.)
In Service Temperature	-10°F (-23°C) - 120°F (49°C)
Storage Temperature	Less than 120°F (49°C)
Shelf Life	No Limit

Ordering Information

Catalog Number	UPC Number	Description	(UOM) Qty.	Case Qty.	Weight (Each)
EZD84S2	730573952313	EZ-Path Series 84+ Fire-Rated Pathway, device only. Includes labels	1	1	8.6 lbs
EZDP84S2	730573952399	EZ-Path Series 84+ Fire-Rated Pathway Device Kit, Full kit with device, wall plates & labels	1	1	11 lbs
EZP184W	730573952344	EZ-Path Series 84+ Fire-Rated Pathway Single Wall Plates - One pair (2) & labels	1	1	2 lbs
EZP284W	730573952351	EZ Path Series 84+ Multi-gang Wall Plate Brackets for 2 devices, single row	1	1	lbs
EZP484W	730573952375	EZ Path Series 84+ Multi-gang Wall Plate Brackets for 4 devices, single row	1	1	lbs
EZP684W	730573952320	EZ Path Series 84+ Multi-gang Wall Plate Brackets for 6 devices, single row	1	1	lbs
EZP284WD	730573952368	EZ Path Series 84+ Multi-gang Wall Plate Brackets for 4 devices, double row	1	1	lbs
EZP484WD	730573952382	EZ Path Series 84+ Multi-gang Wall Plate Brackets for 8 devices, double row	1	1	lbs
EZP684WD	730573952337	EZ Path Series 84+ Multi-gang Wall Plate Brackets for 12 devices, double row	1	1	lbs
